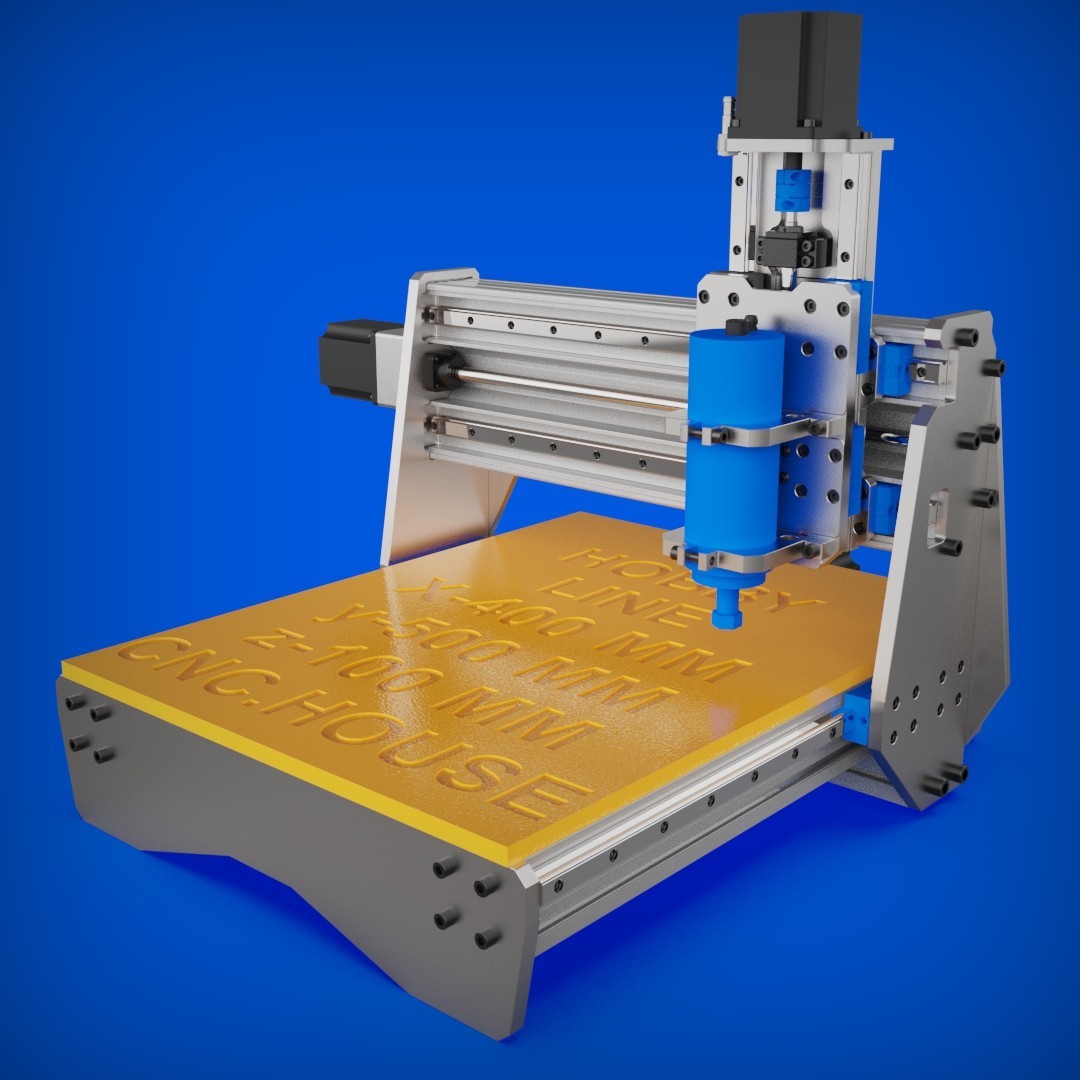

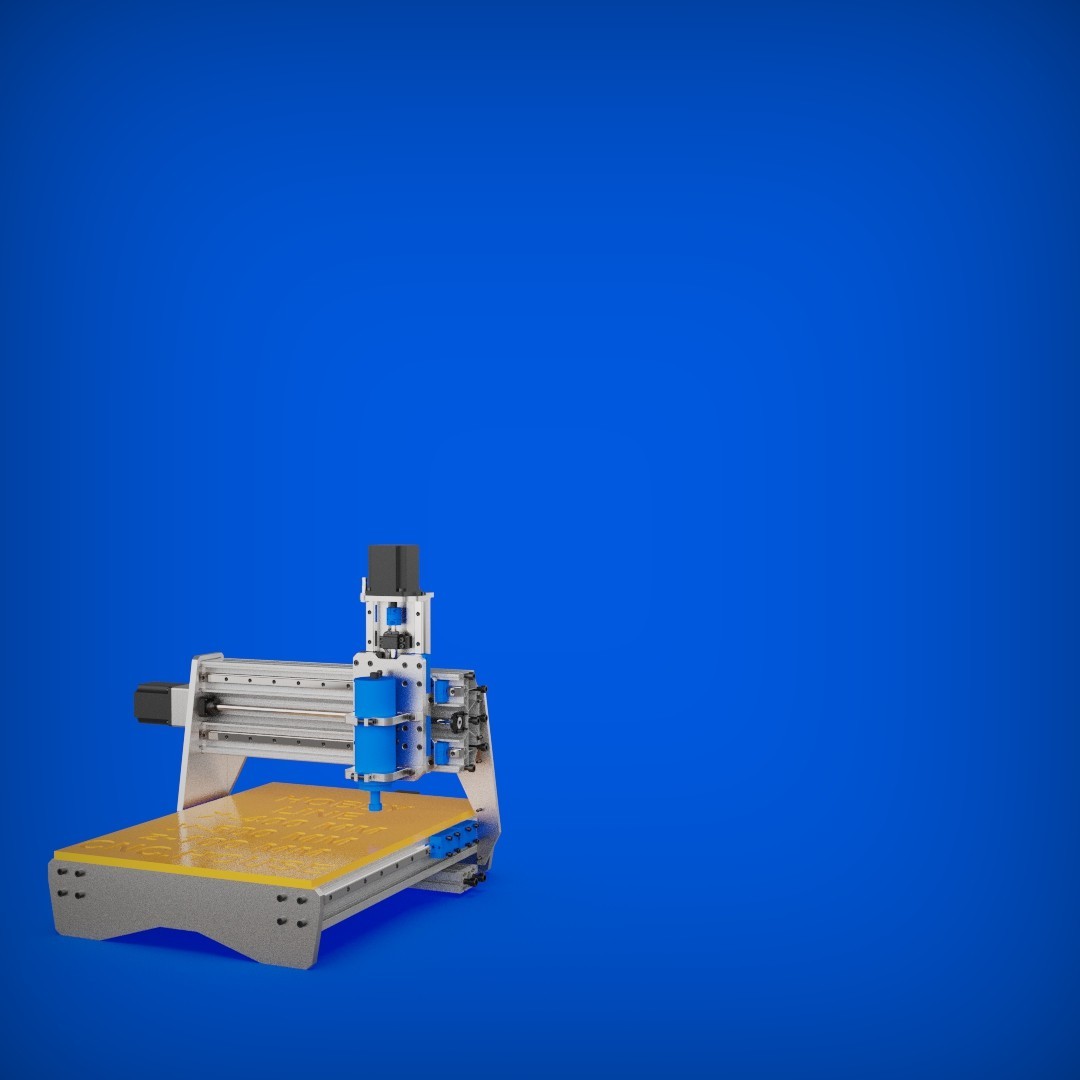

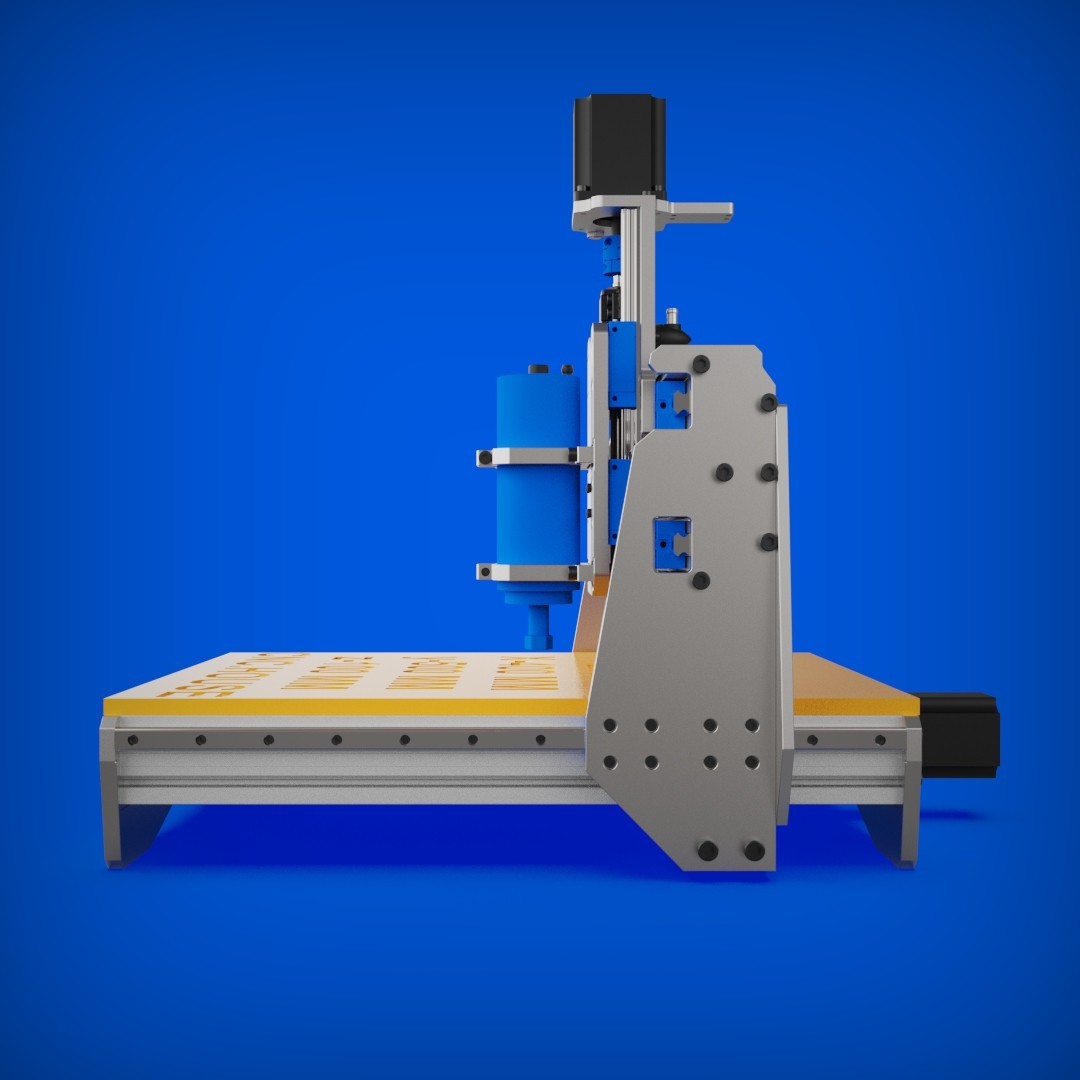

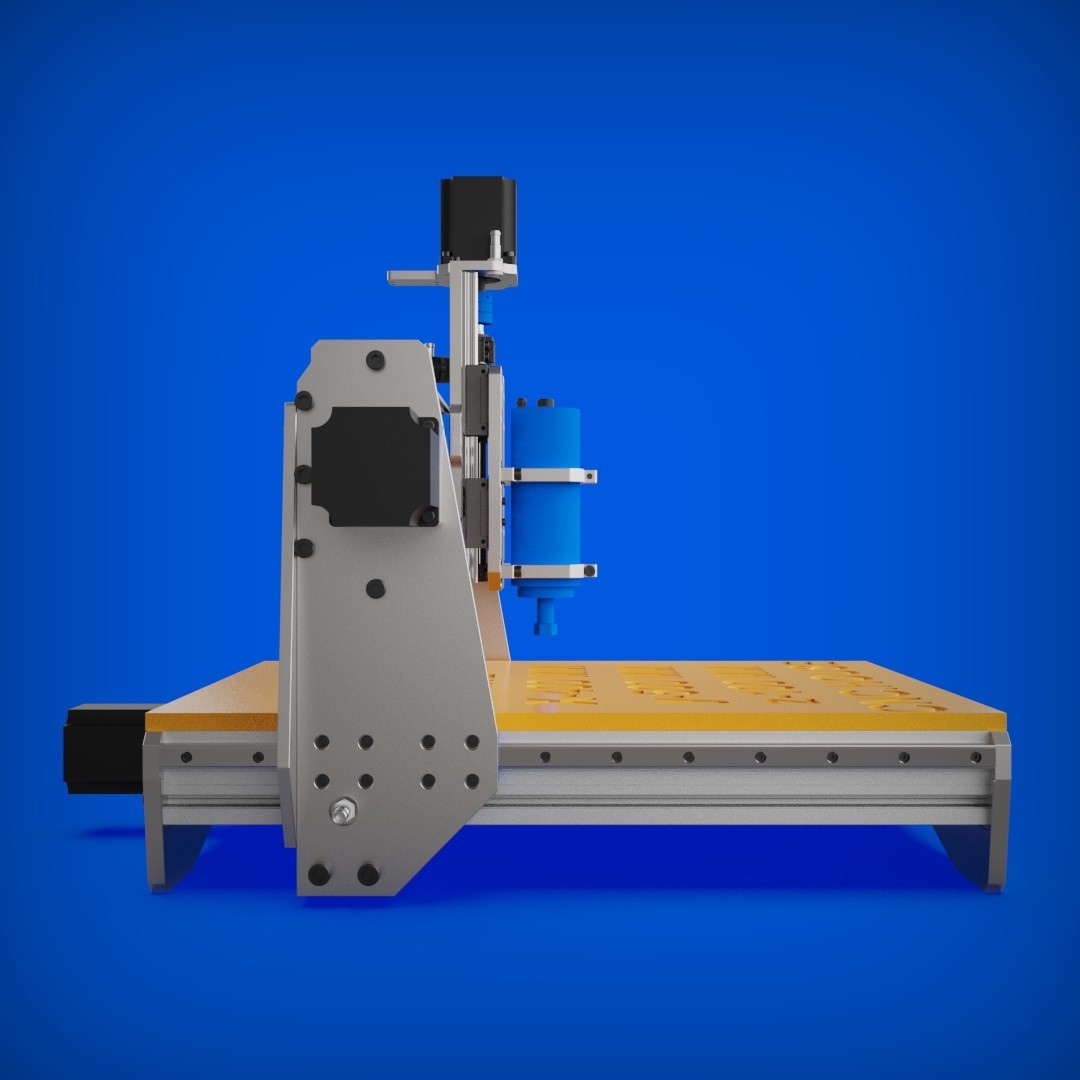

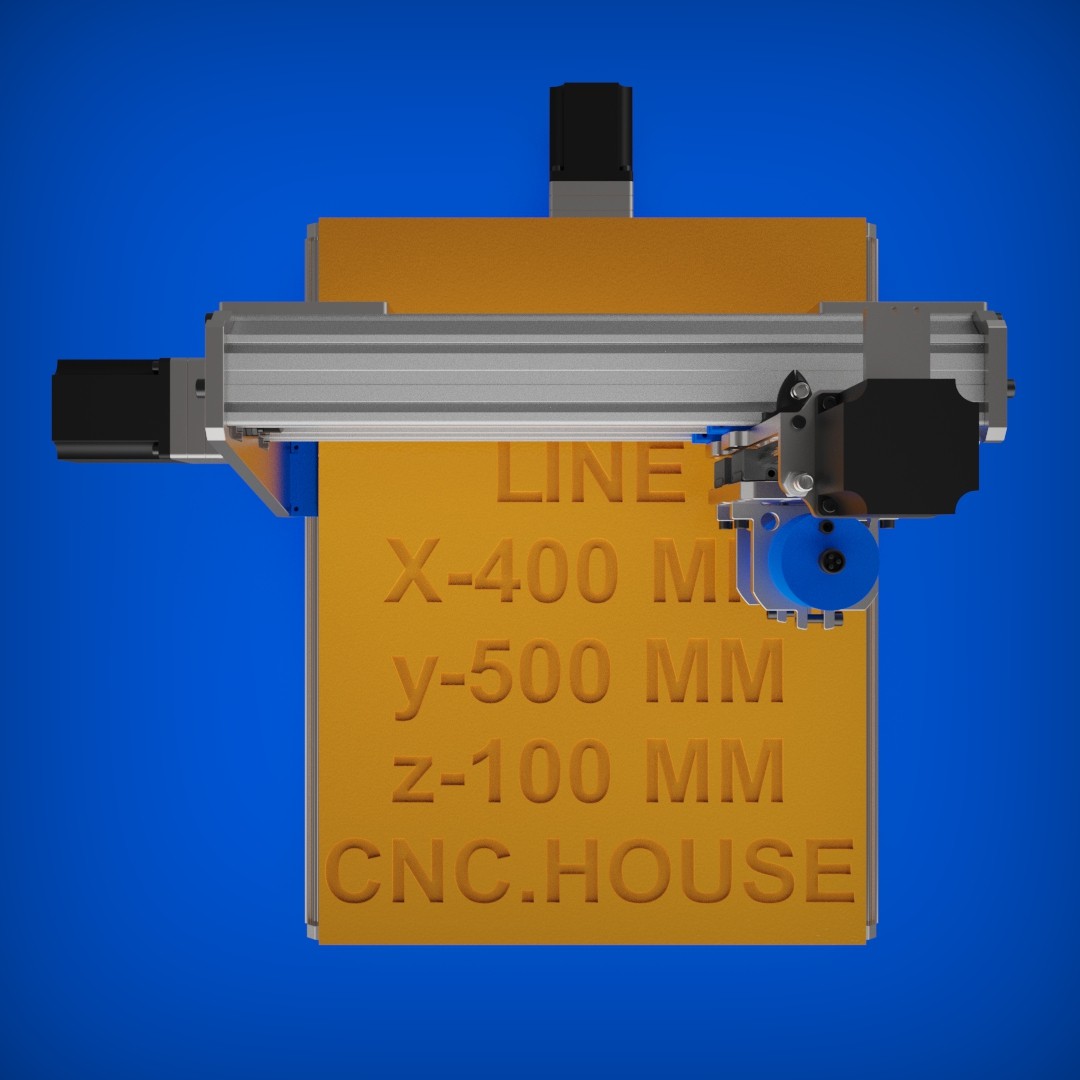

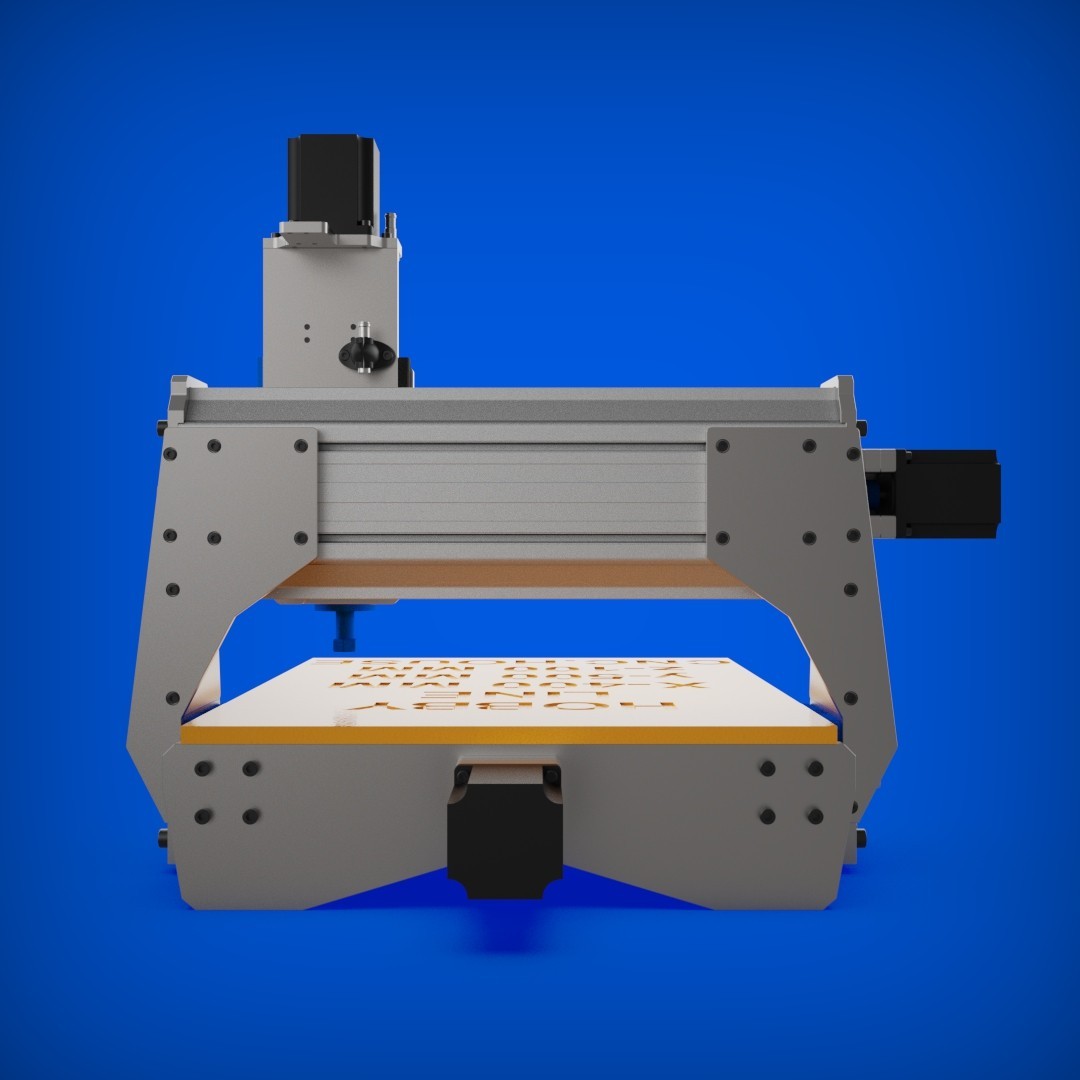

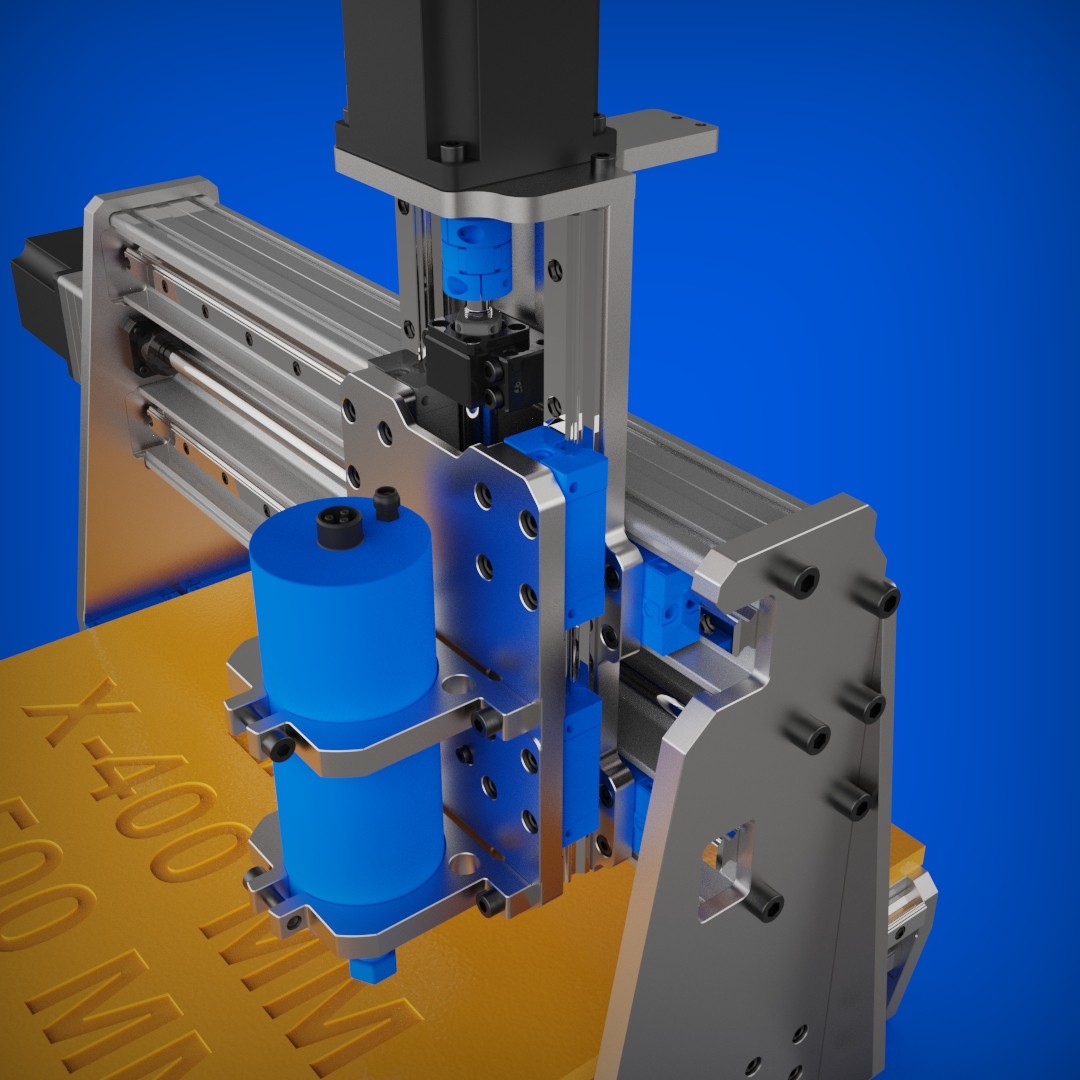

Our Compact Line Mechanical CNC Kit is a perfect starting point for your machining needs, delivering all the necessary mechanical components in a single, all-inclusive package. This kit is a perfect solution for enthusiasts and professionals looking to build their CNC machine. Here’s what you will get:

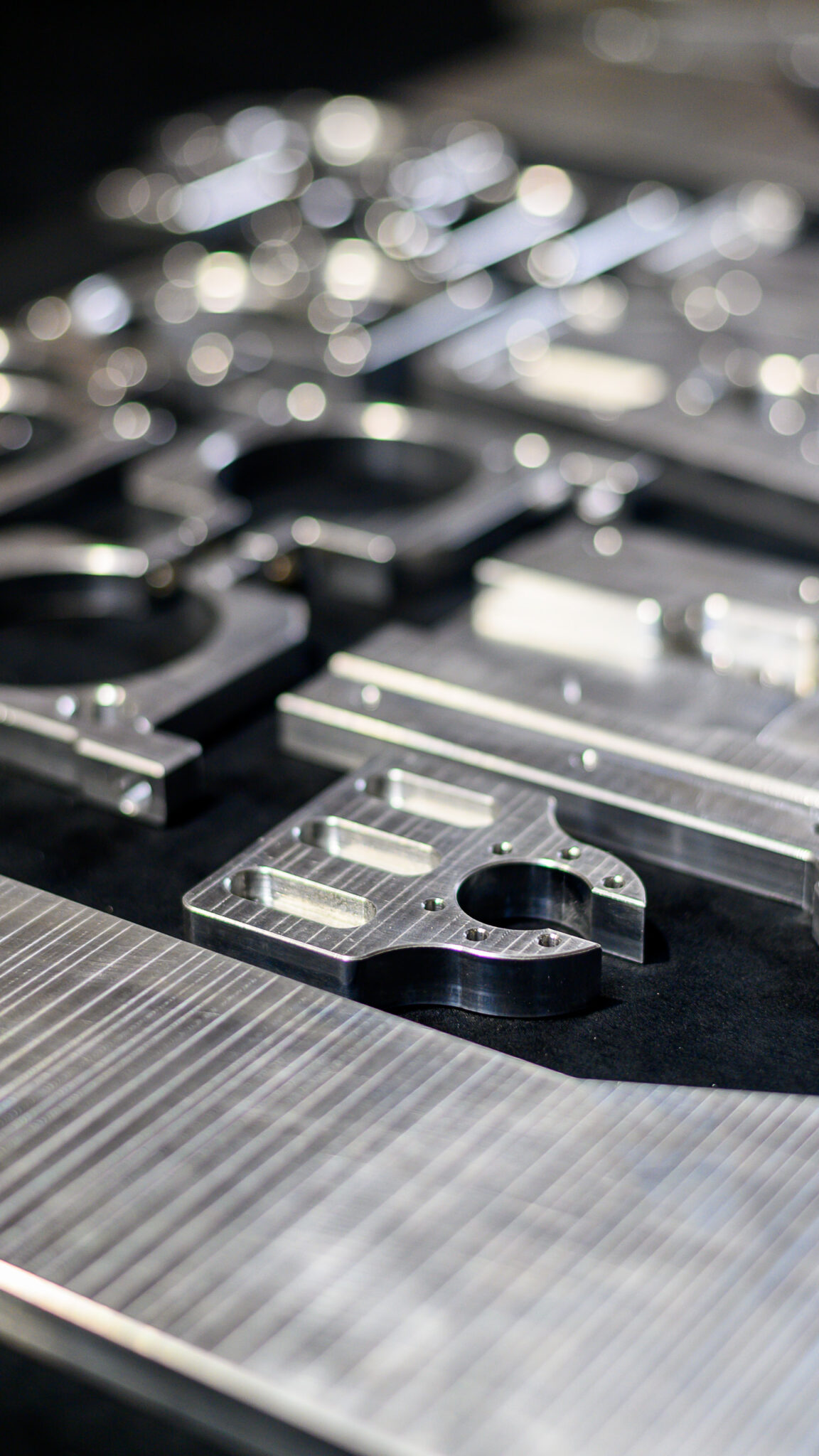

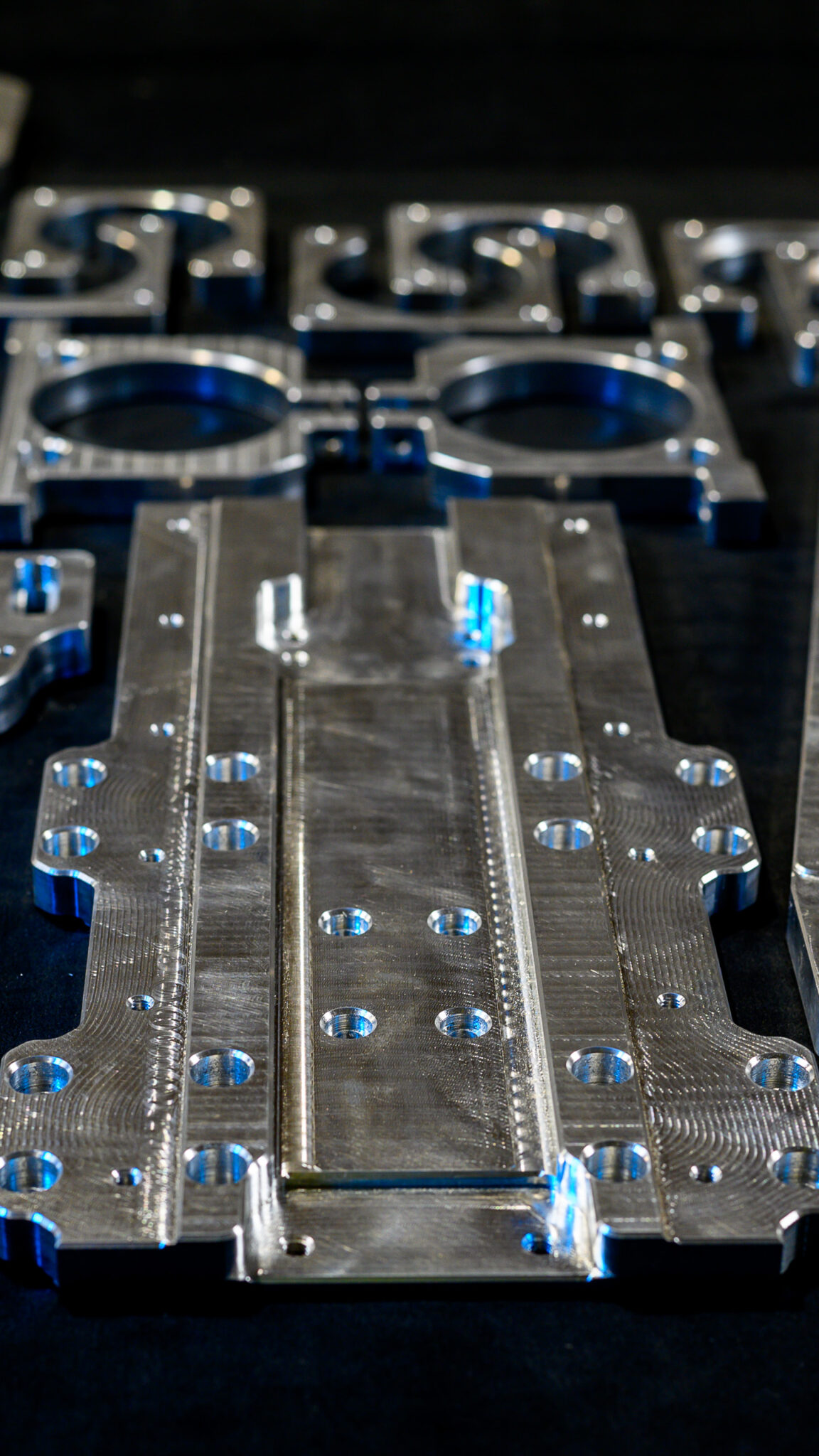

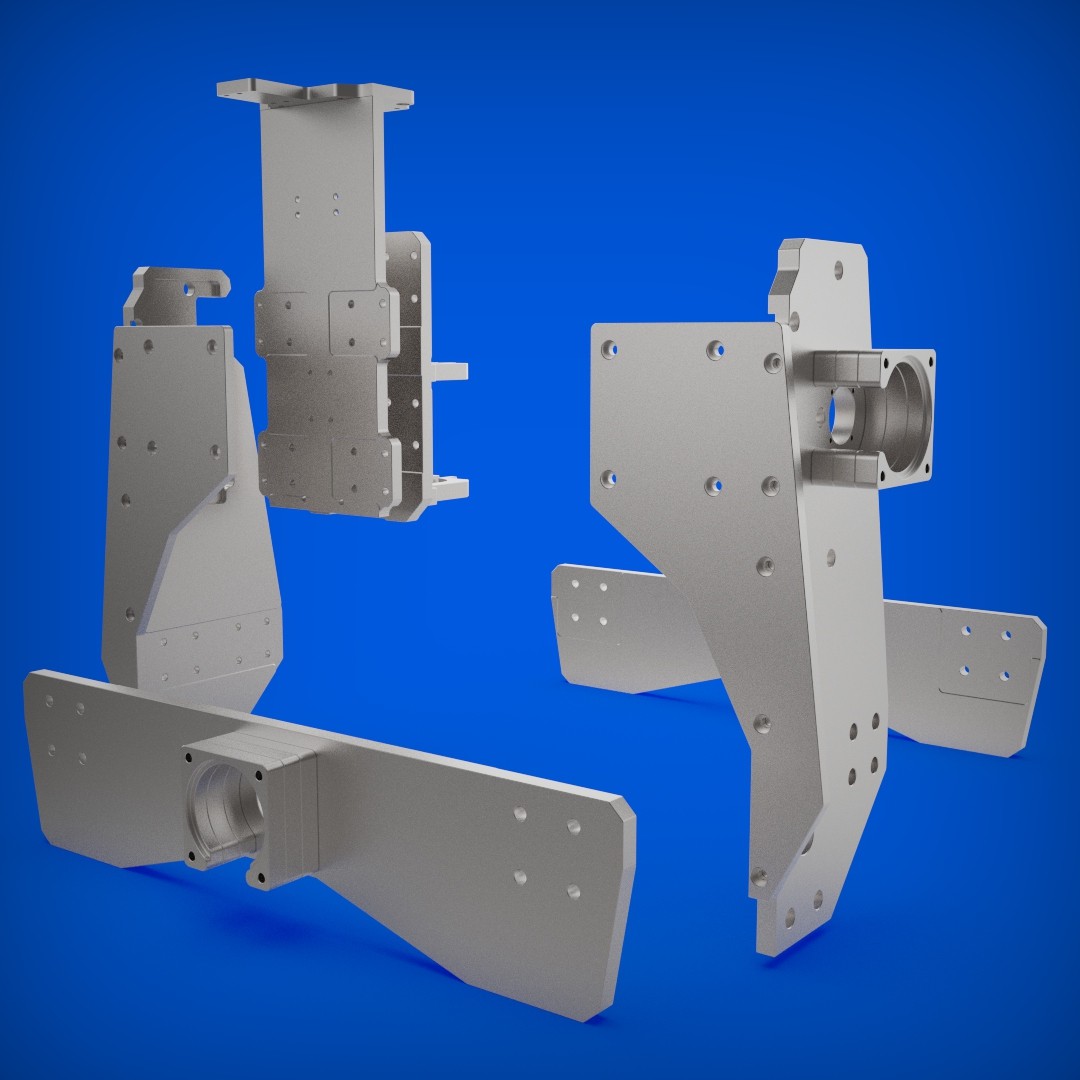

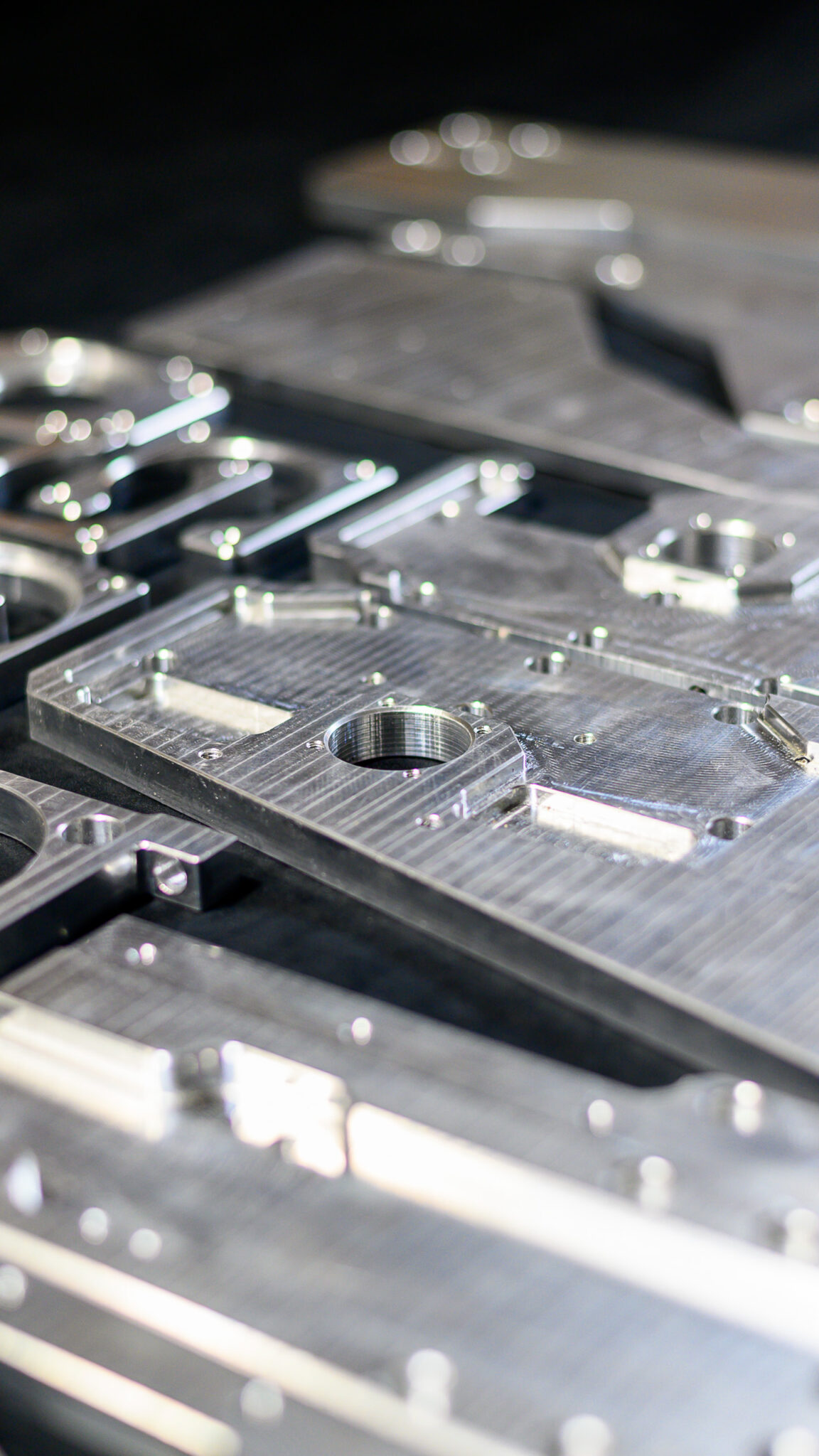

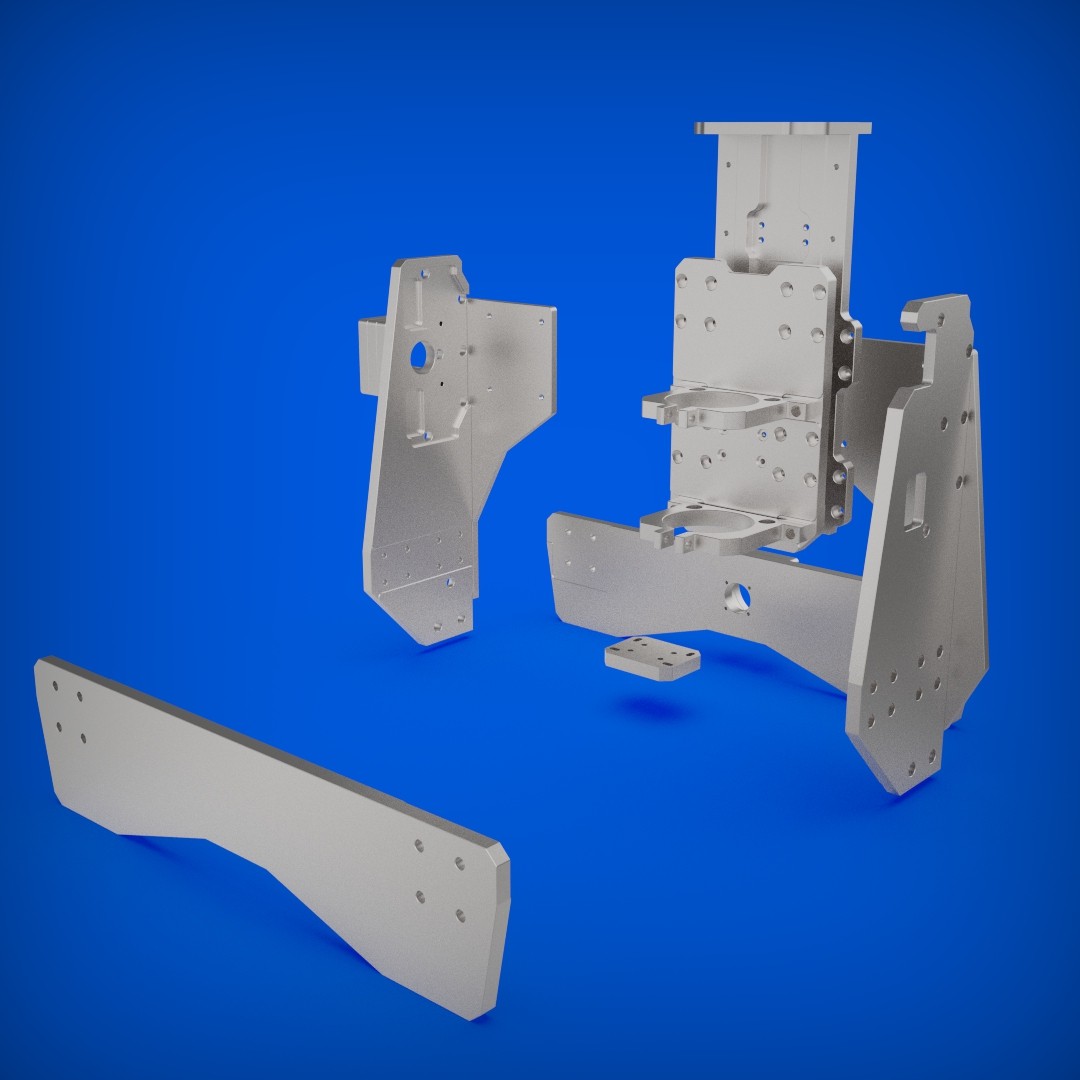

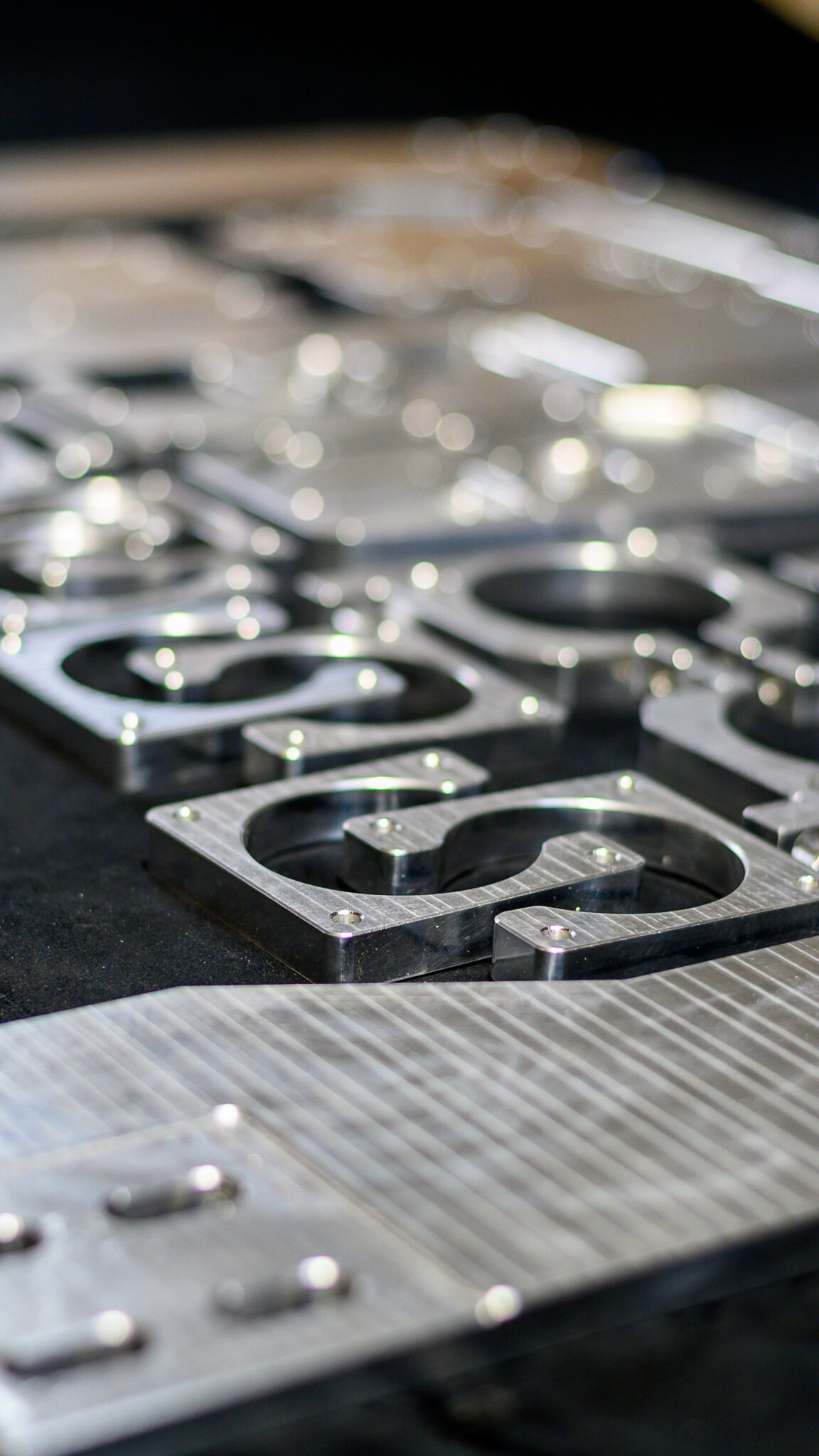

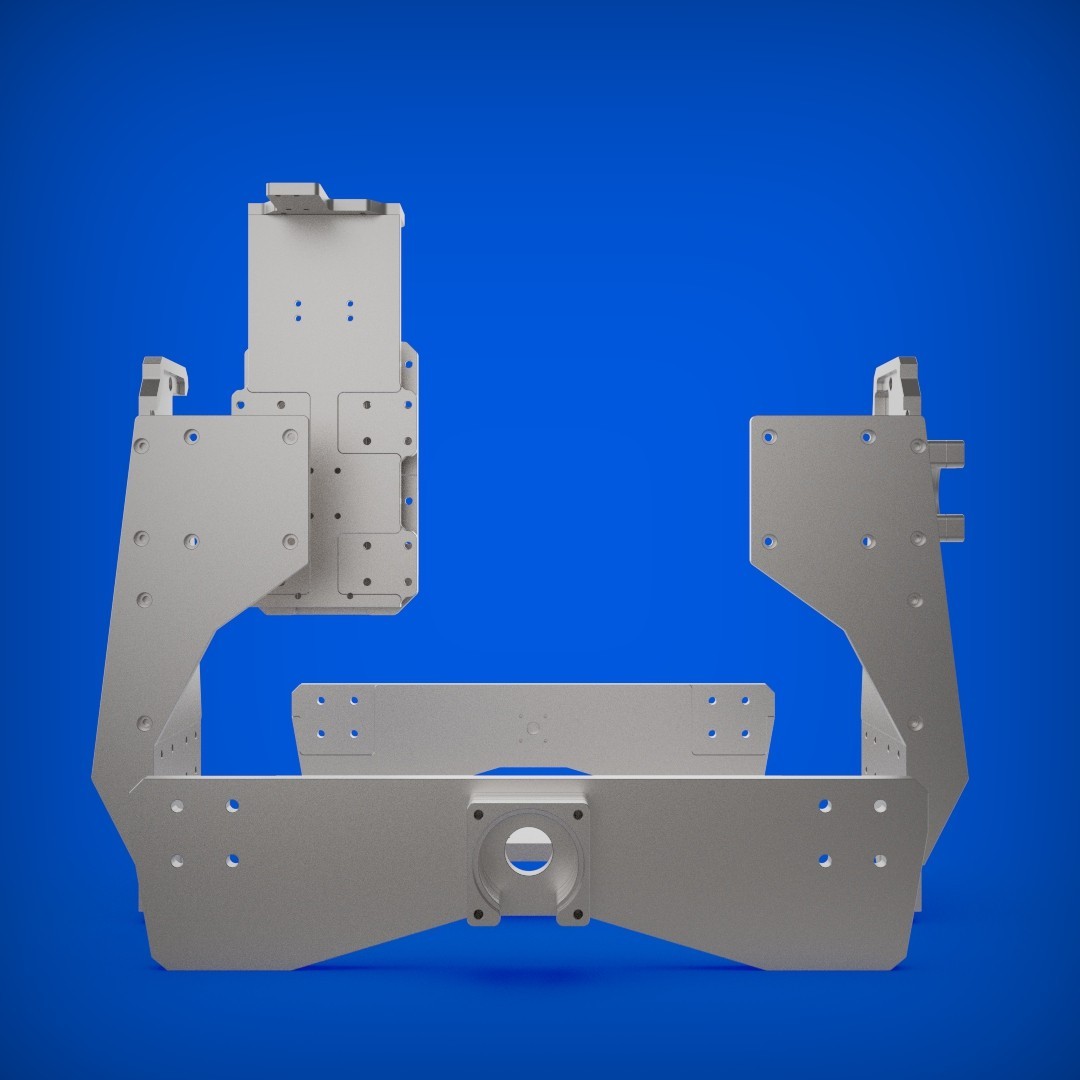

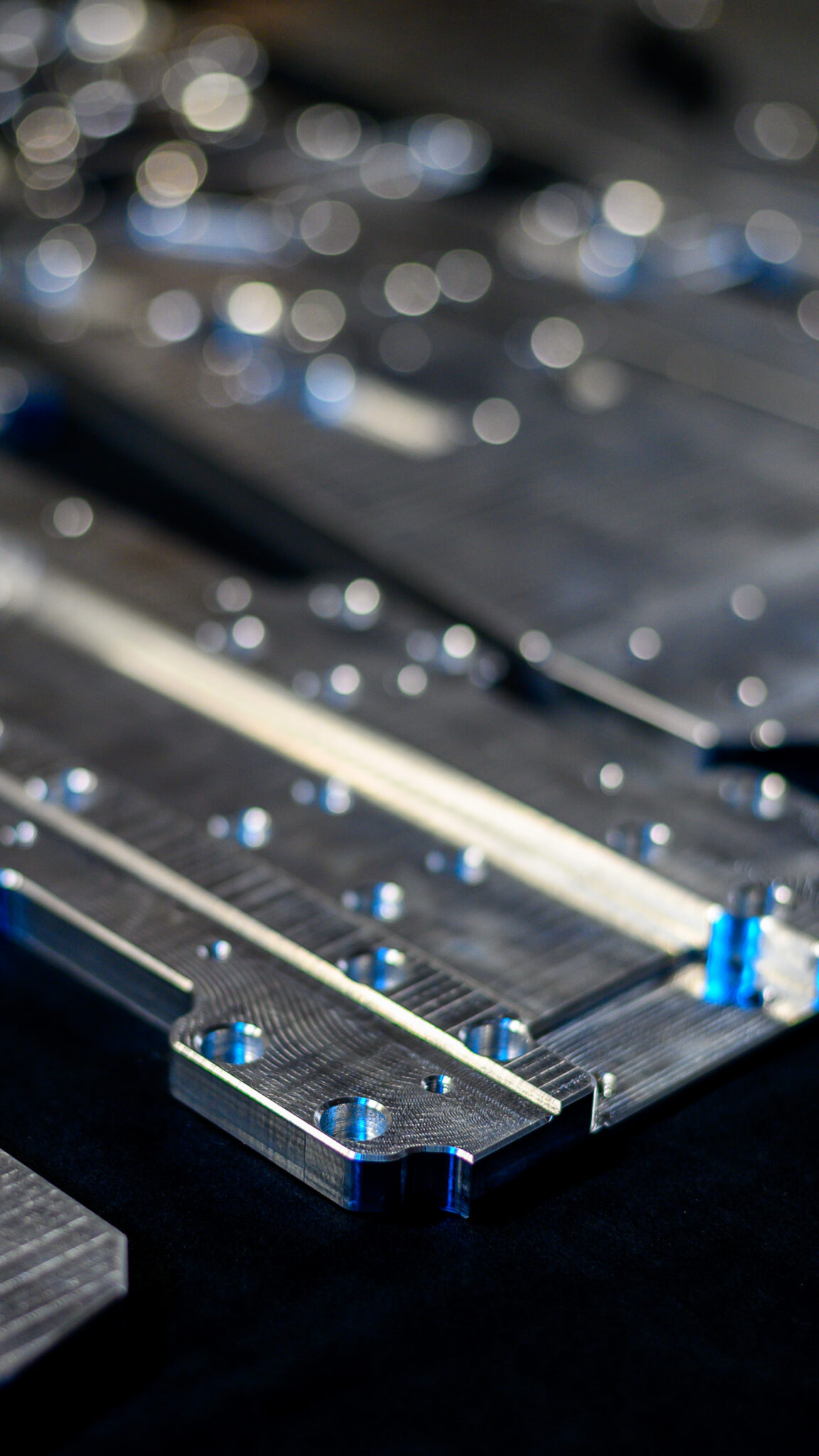

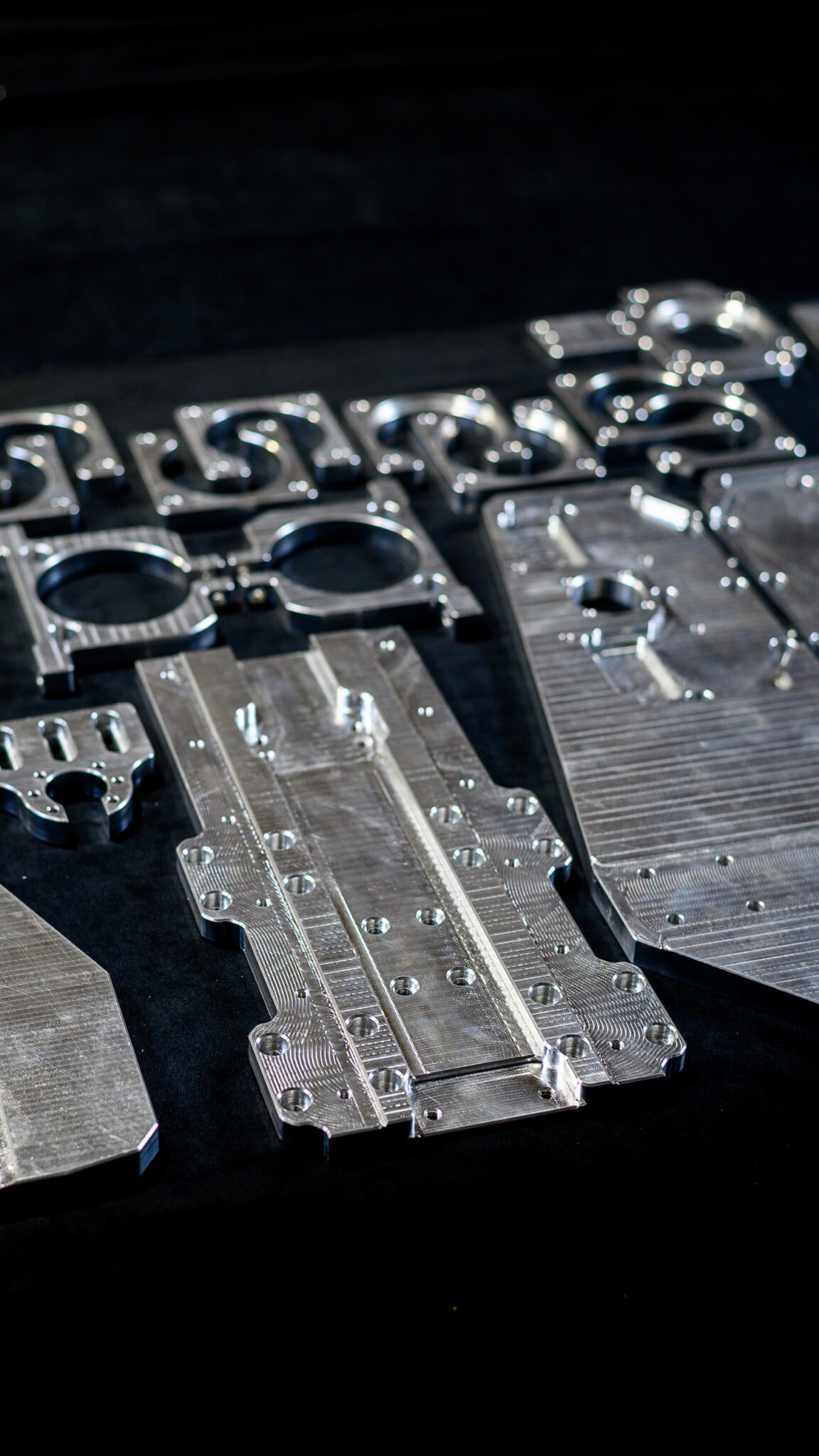

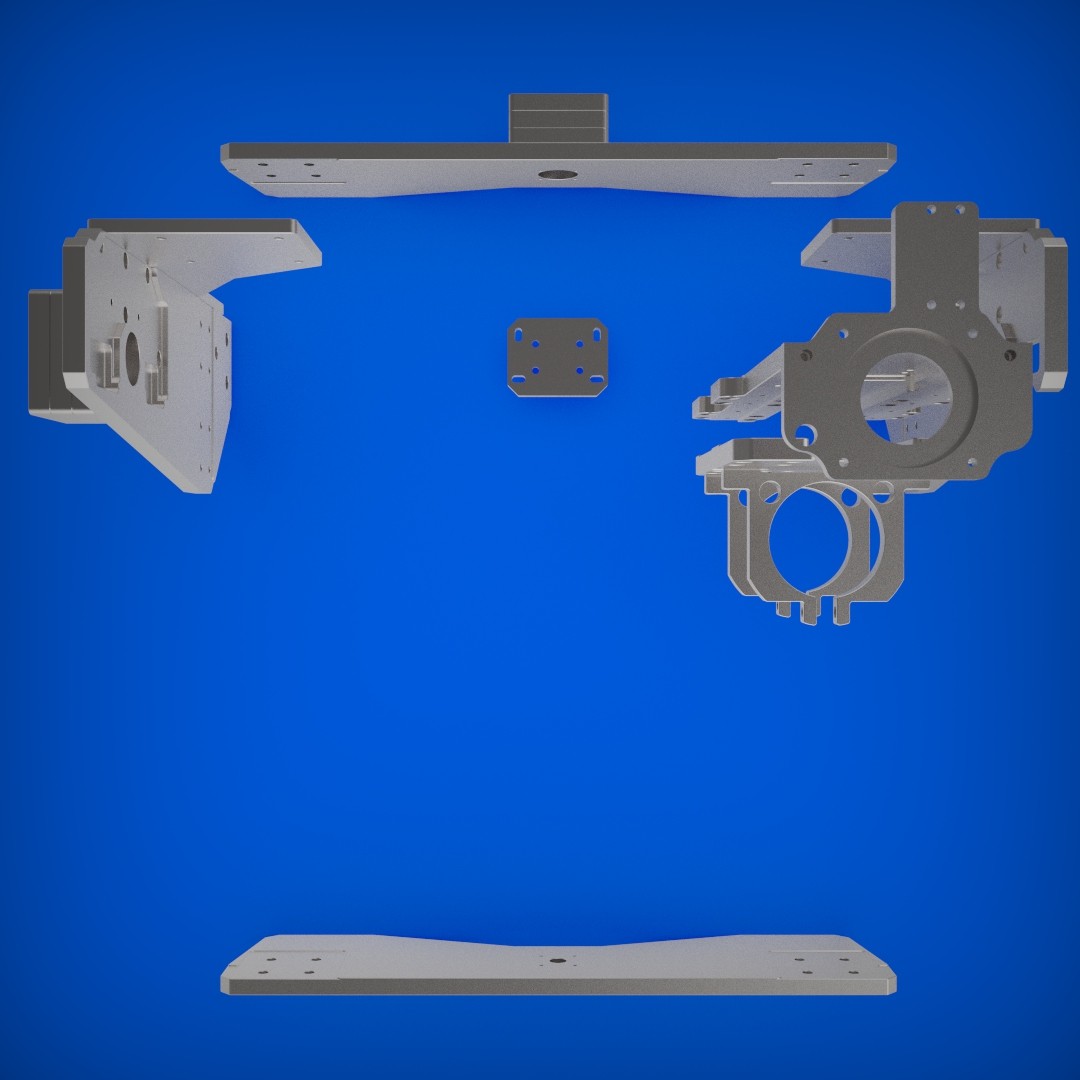

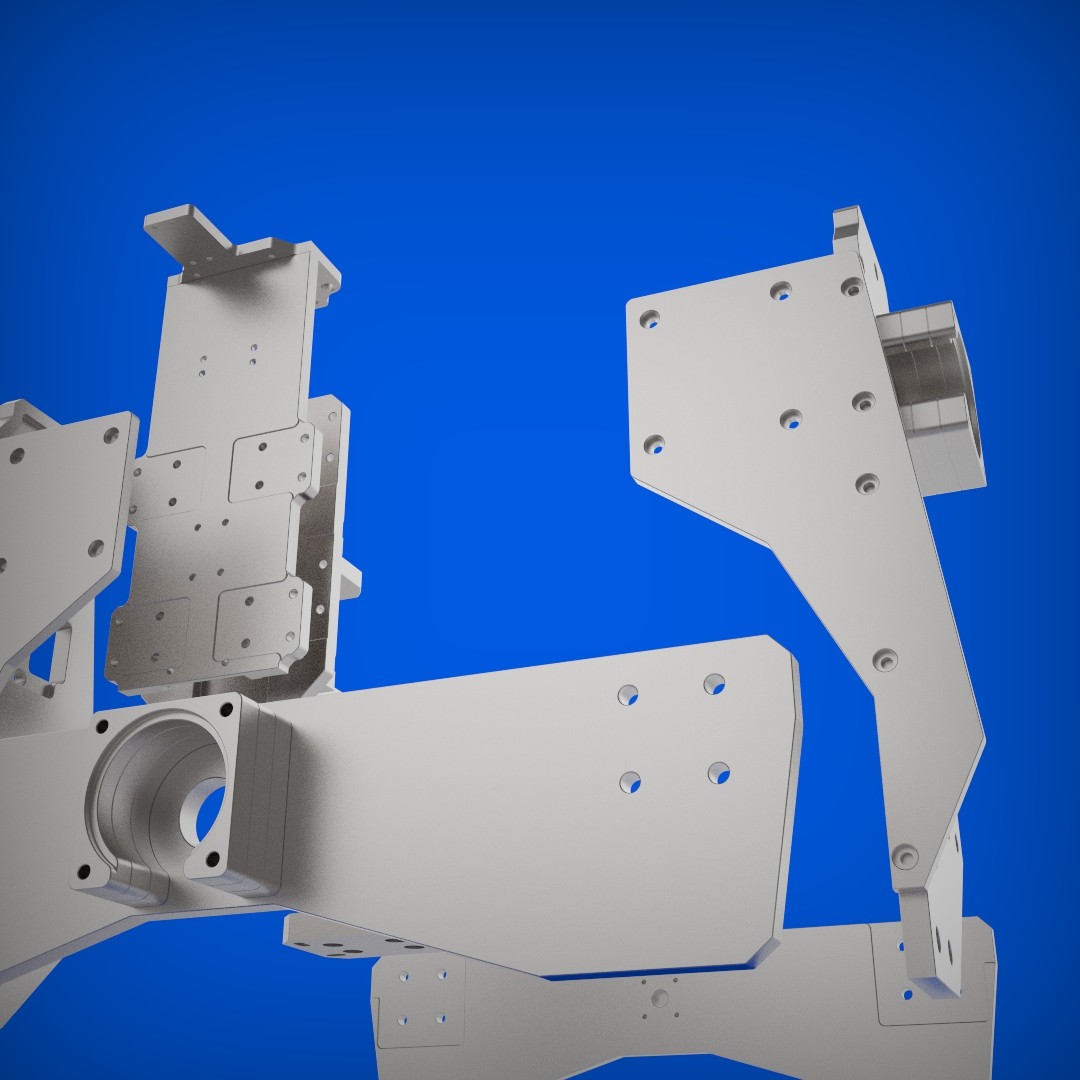

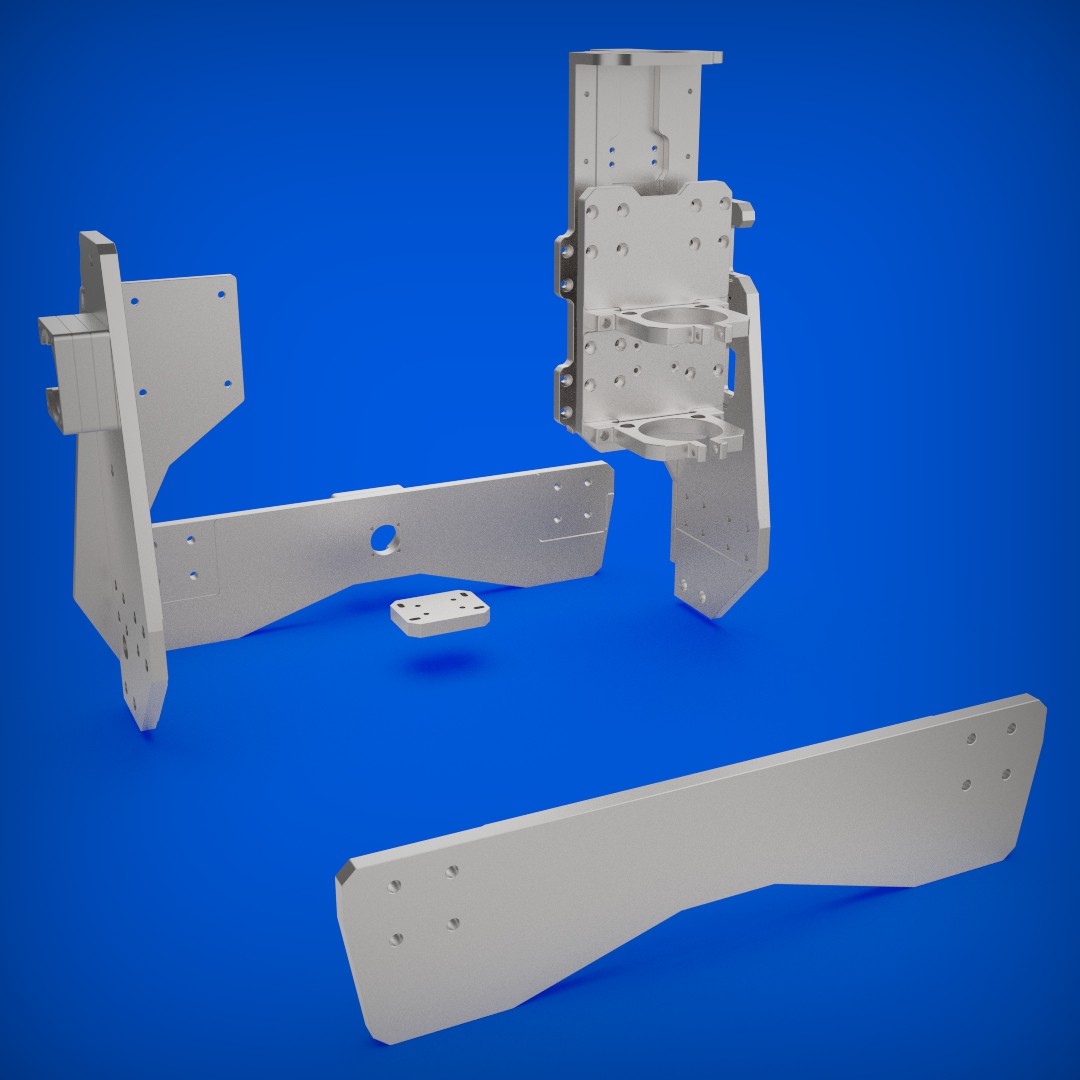

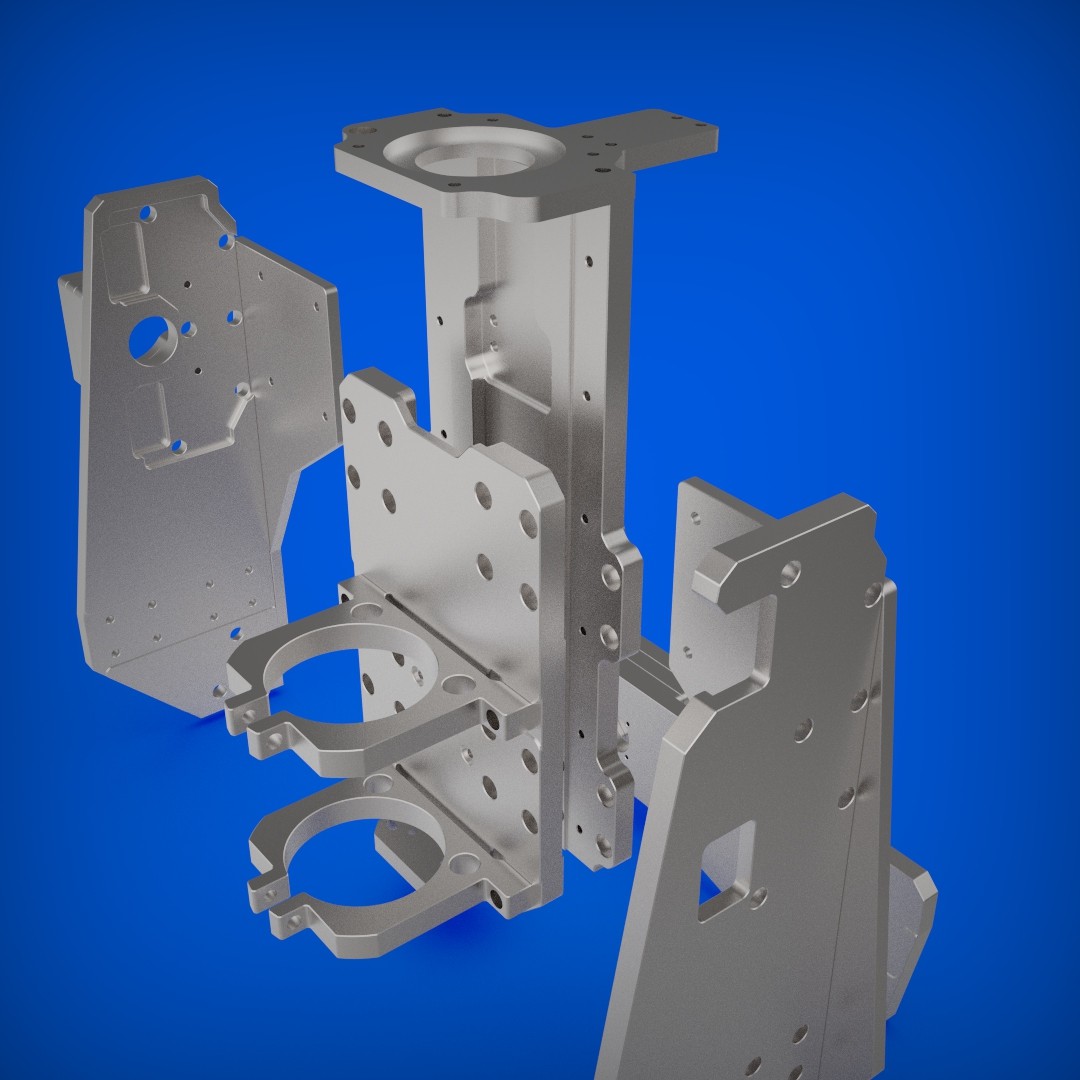

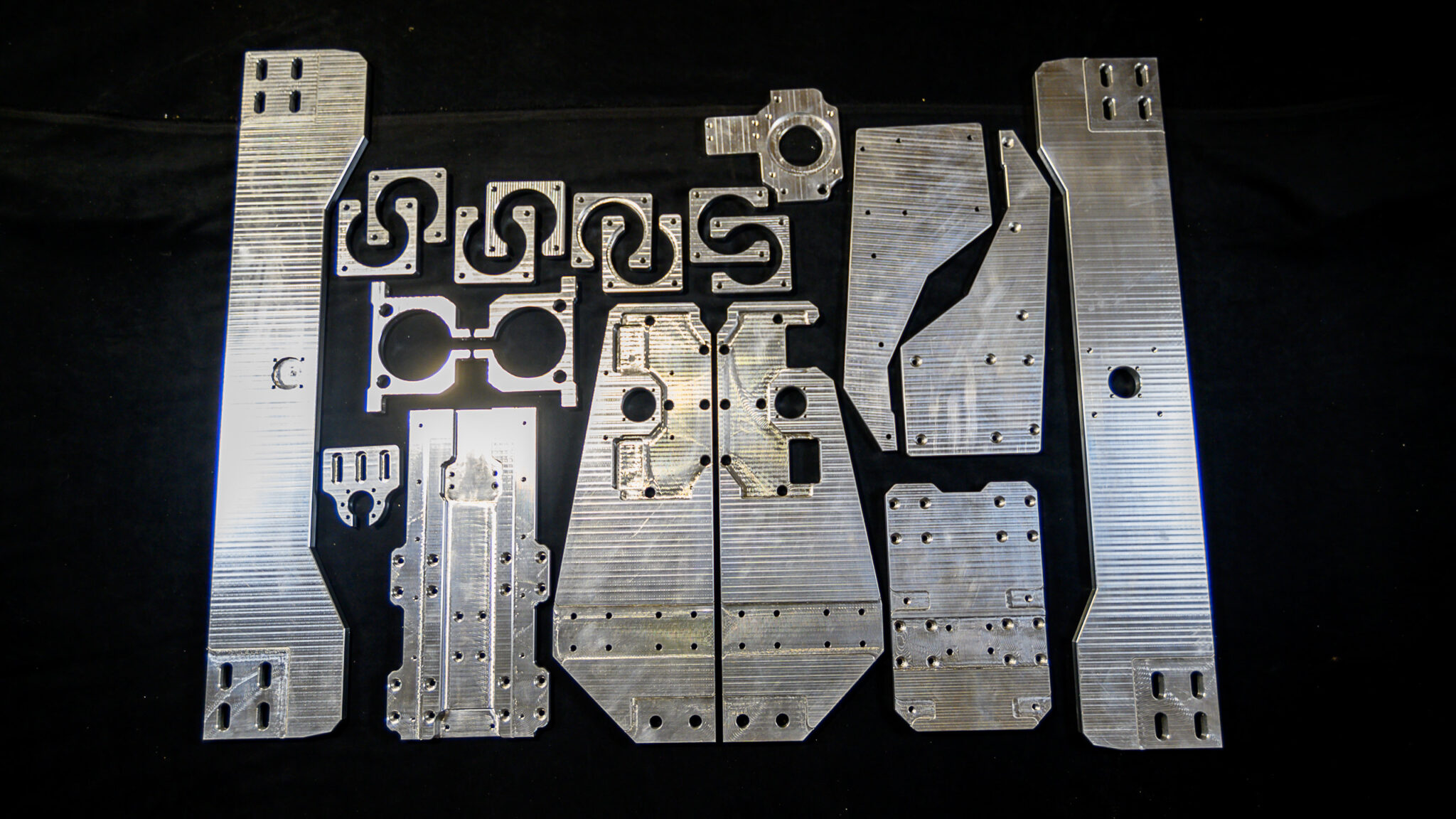

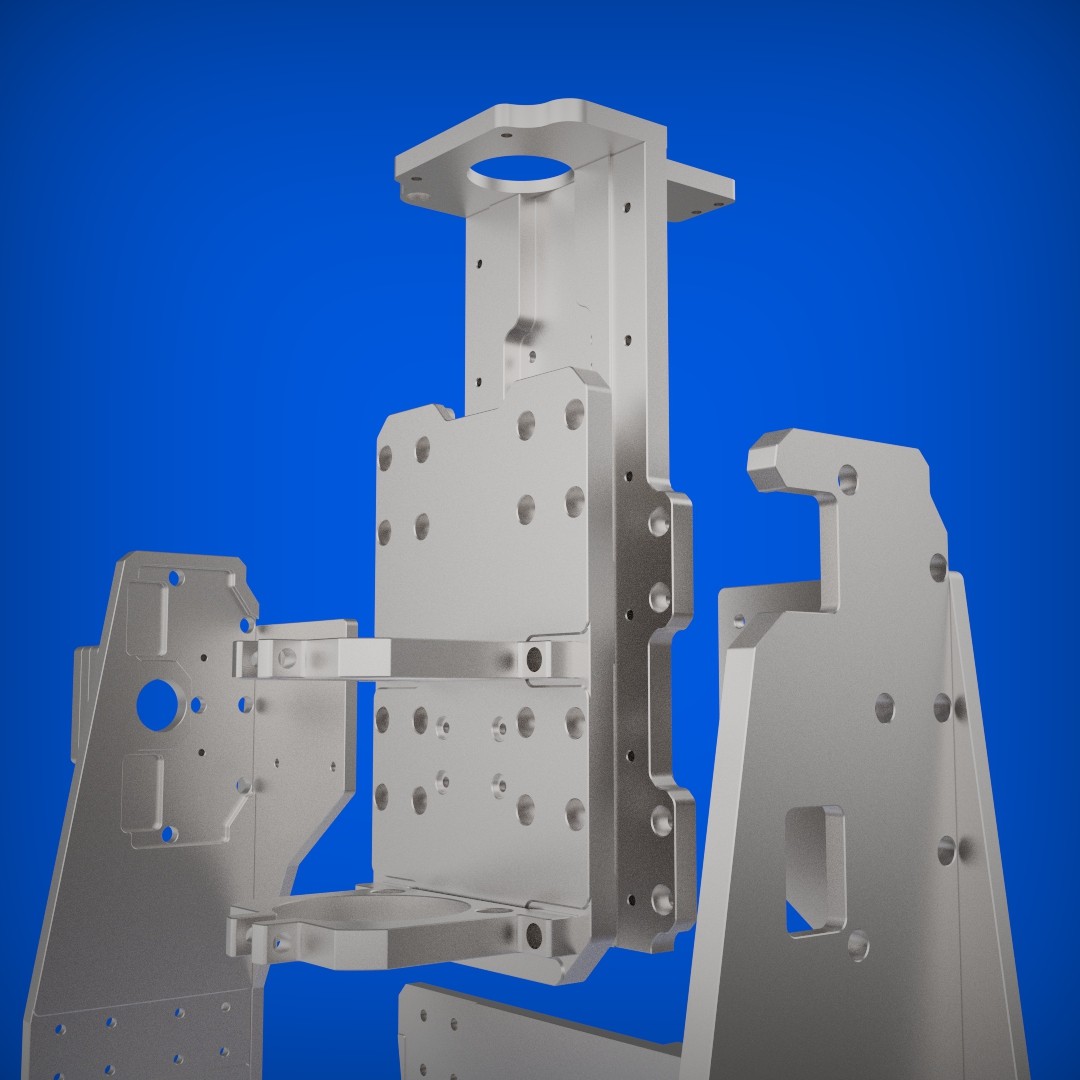

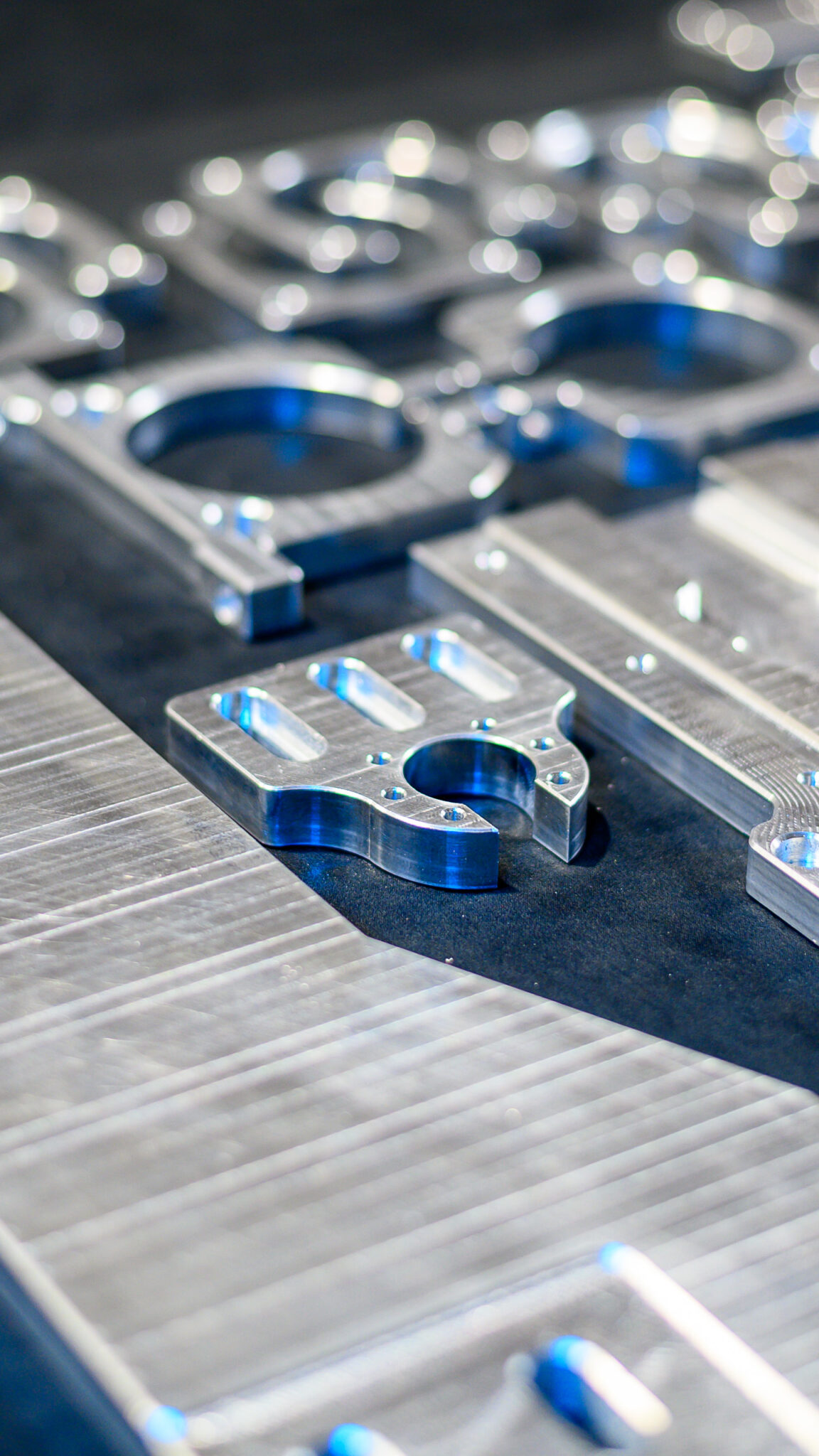

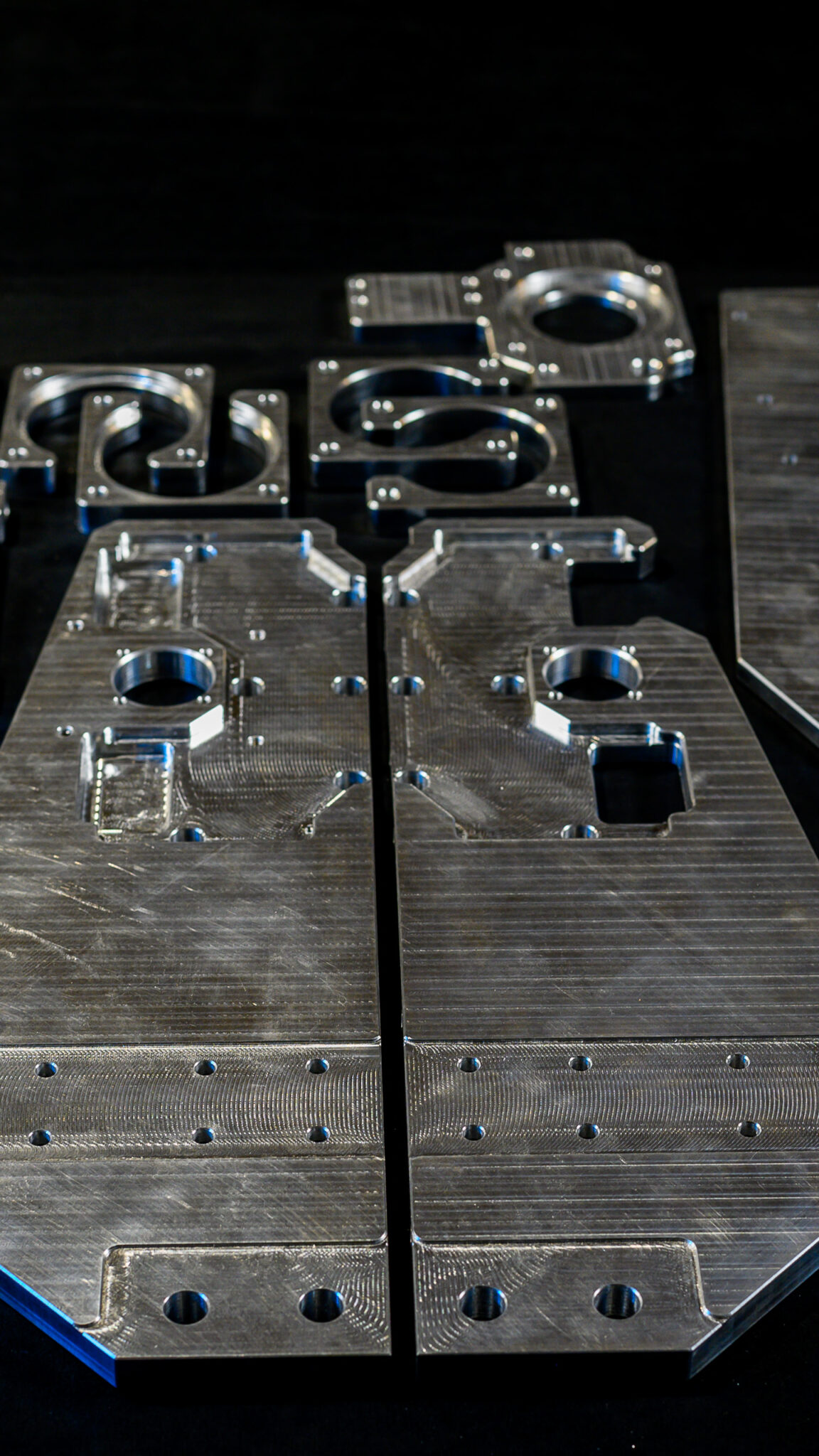

Milled Plates:

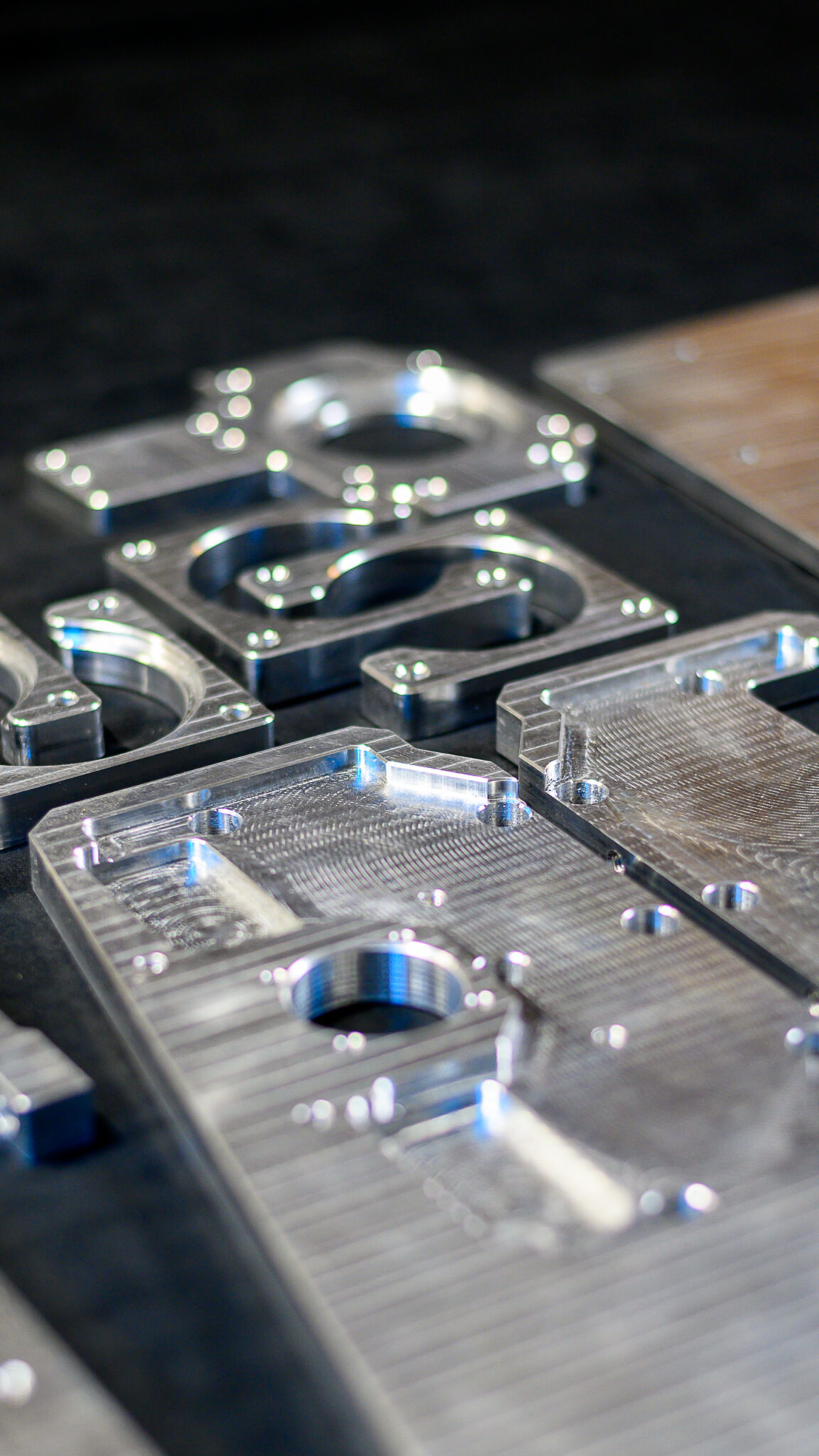

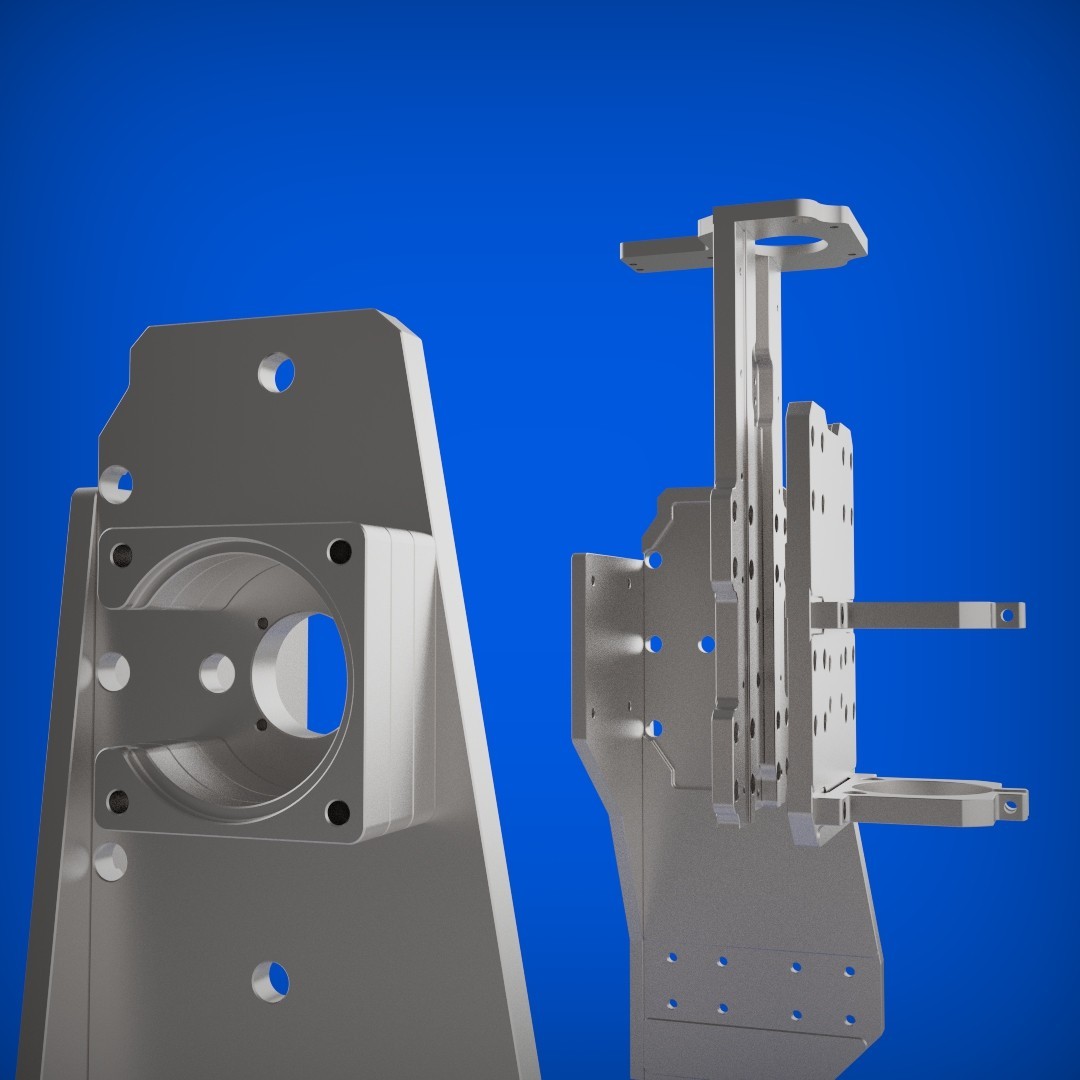

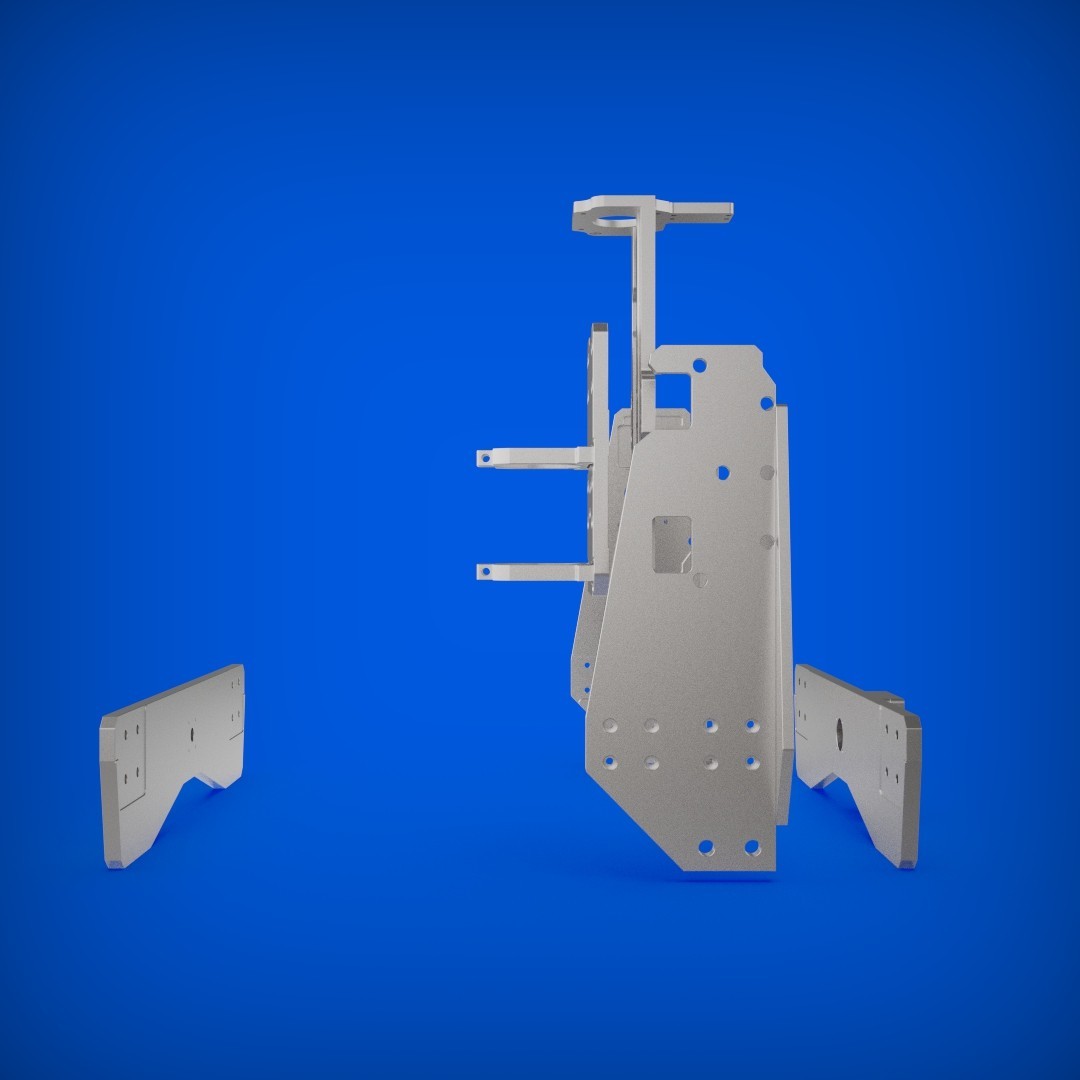

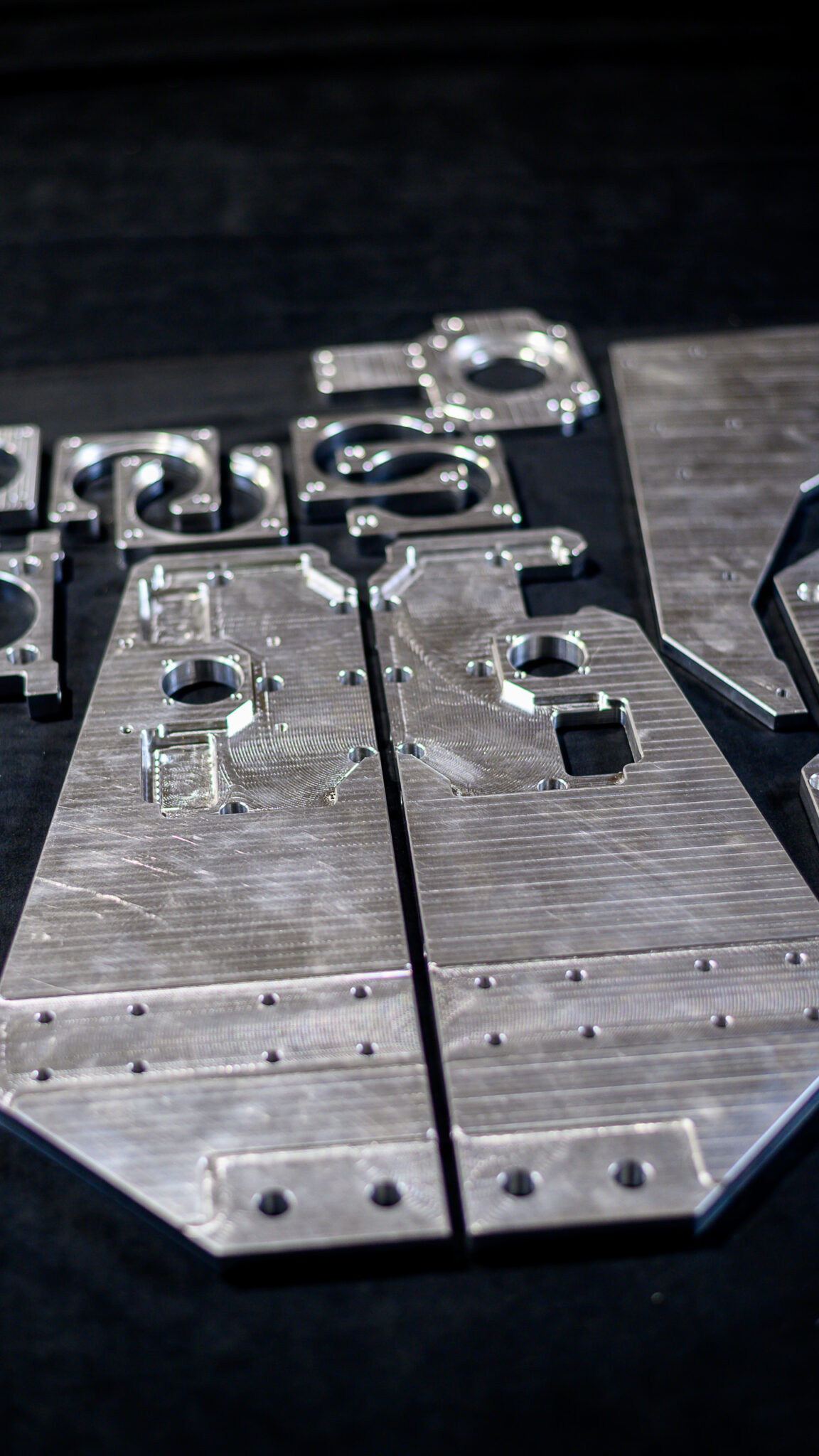

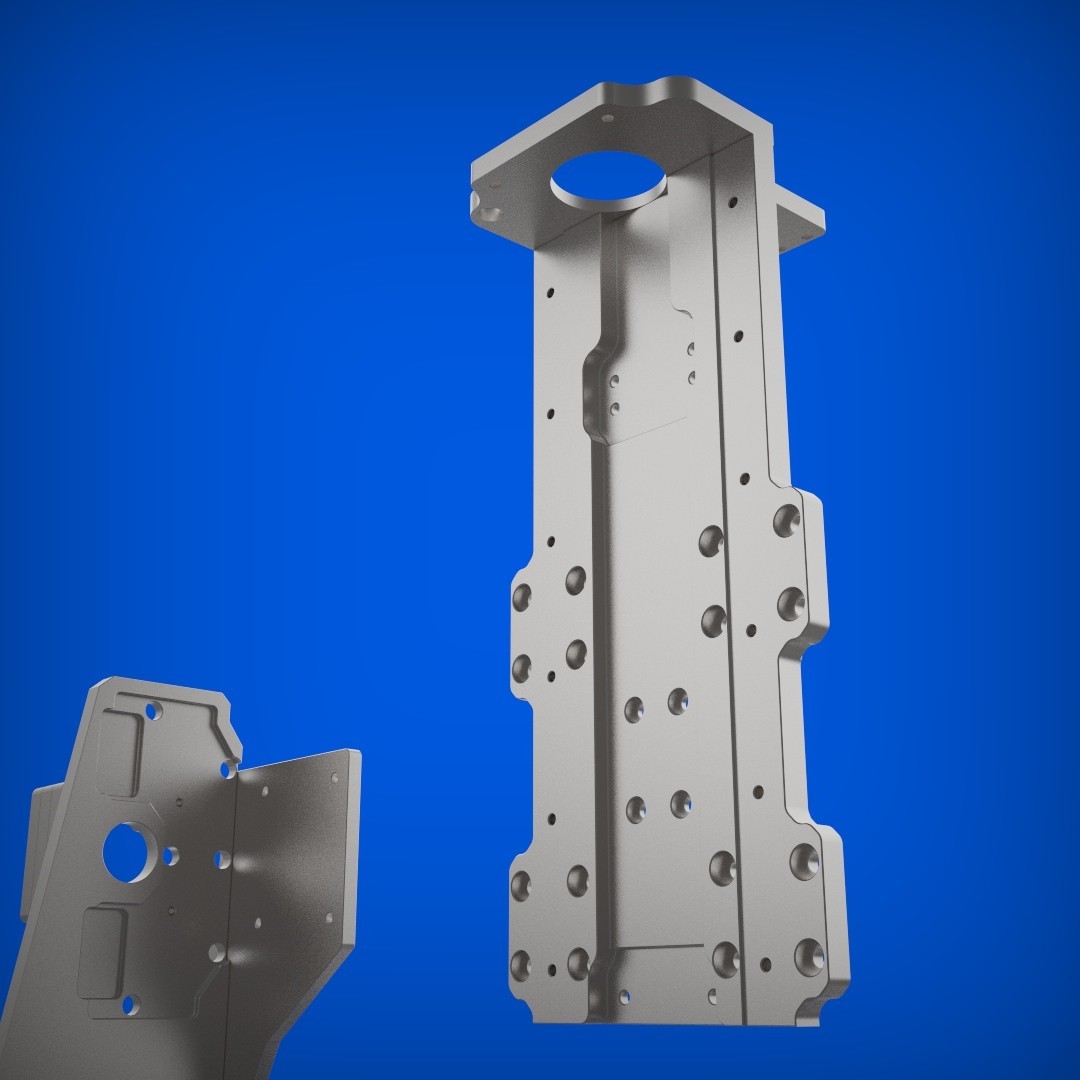

A set of precision-engineered plates made from high-quality aluminum. These milled plates provide the foundational structure for your CNC machine and ensure rigidity and stability during operations.
Aluminum Profiles:
This kit includes premium-grade aluminum profiles. These profiles, with dimensions of 80x80mm and 200x96mm for the gantry, make up the structural skeleton of the CNC machine, adding strength and durability while ensuring lightweight construction.
Linear Rails and Blocks:
Linear rails and carriages of size 20, for all axes. These components guarantee smooth, precise linear motion, and significantly extend the machine’s lifespan.
Z Axis, X, and Y Axis Ball Screws and Nuts:
Size 1605 ball screws and nuts for the X, Y, and Z axes are included.
These components deliver exceptional positioning accuracy with low friction movement. Also included are BK12, BF12 supports and coupling spiders for secure connections.

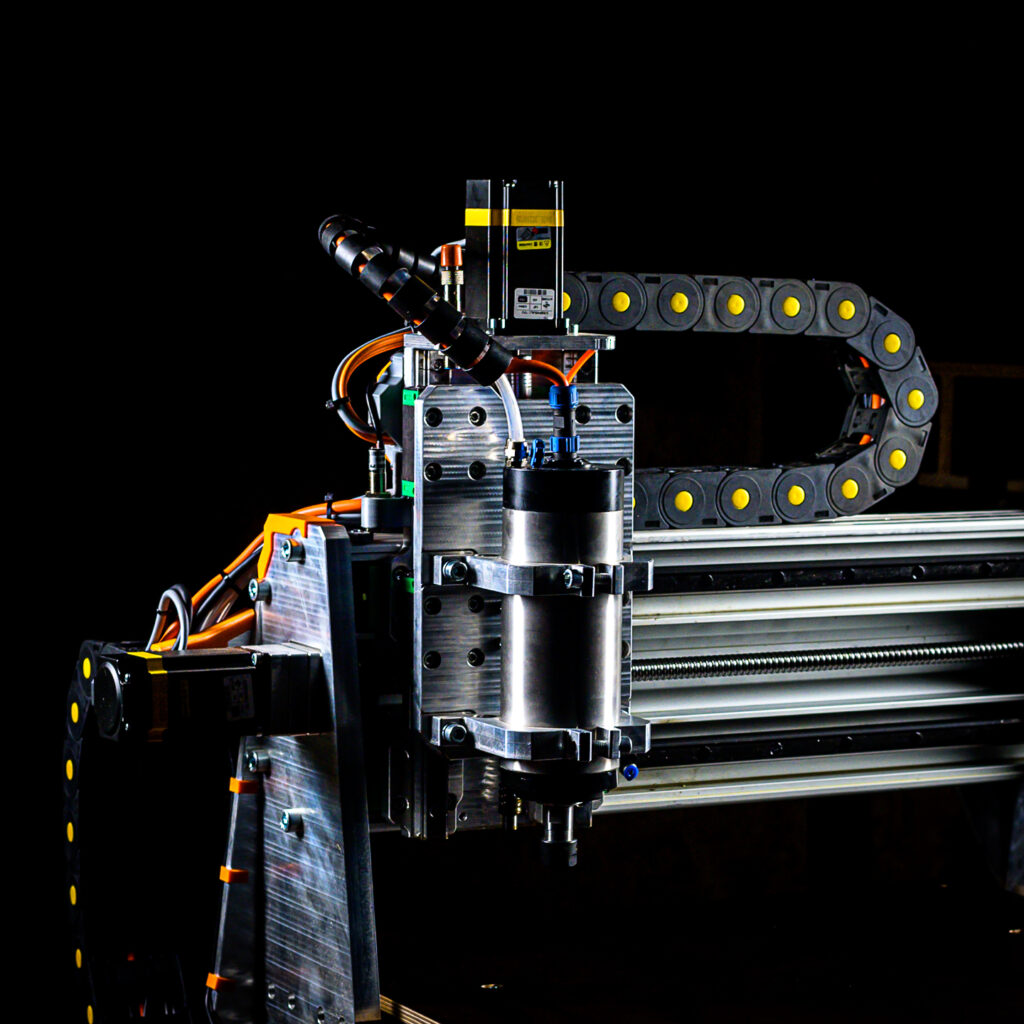

Energy Chains:
The kit comes with energy chains for both the X and Y axes. These energy chains will help in managing the cables efficiently, reducing clutter, and protecting your wires from any mechanical damage.
Screw Set:
Lastly, we provide a comprehensive screw set needed for assembly. This ensures that you have all the necessary hardware at your fingertips, enabling a smooth and efficient assembly process.
Our Compact Line Mechanical CNC Kit brings you a step closer to realizing your CNC machining project. With all the necessary mechanical parts included, you’re set to start building your own CNC machine.
