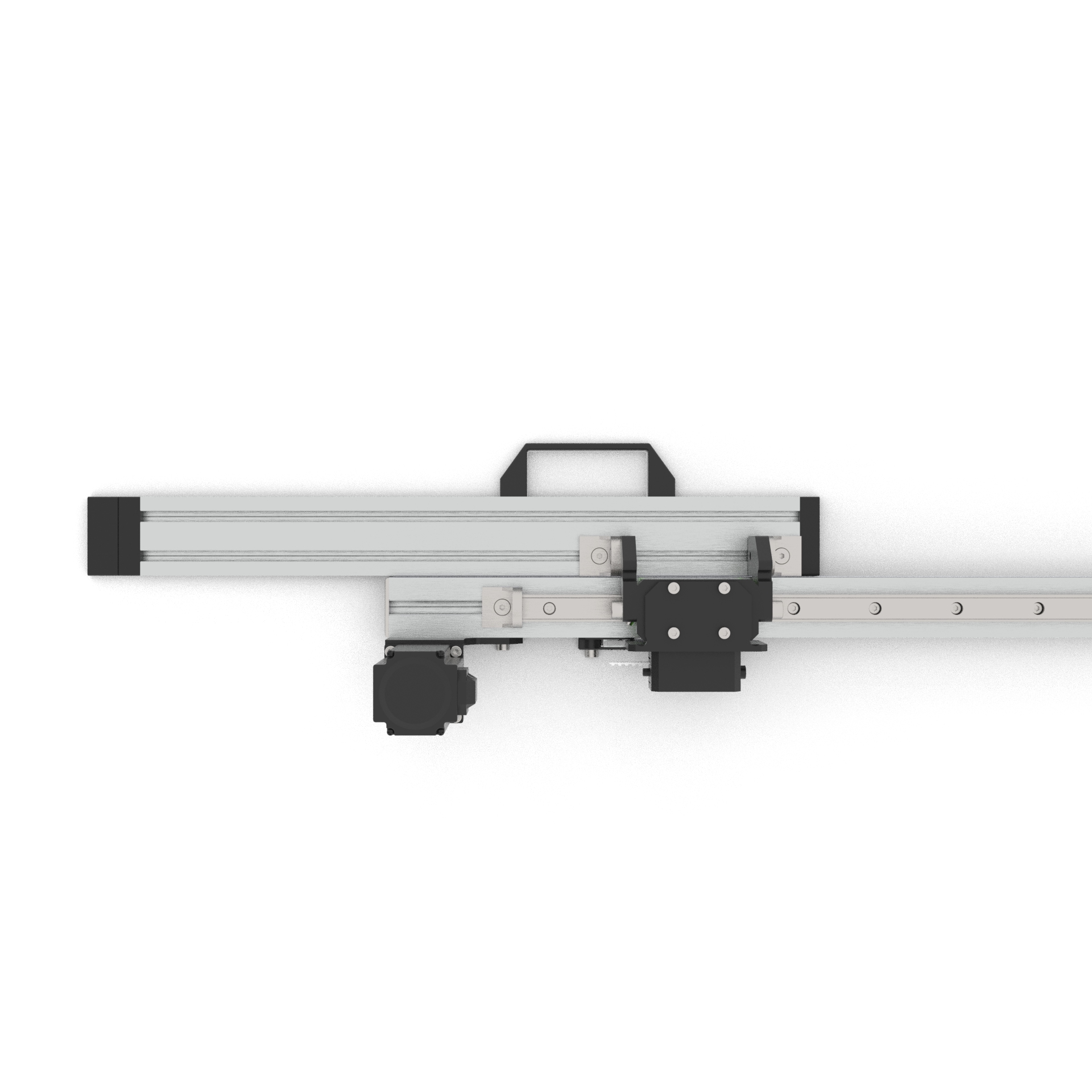

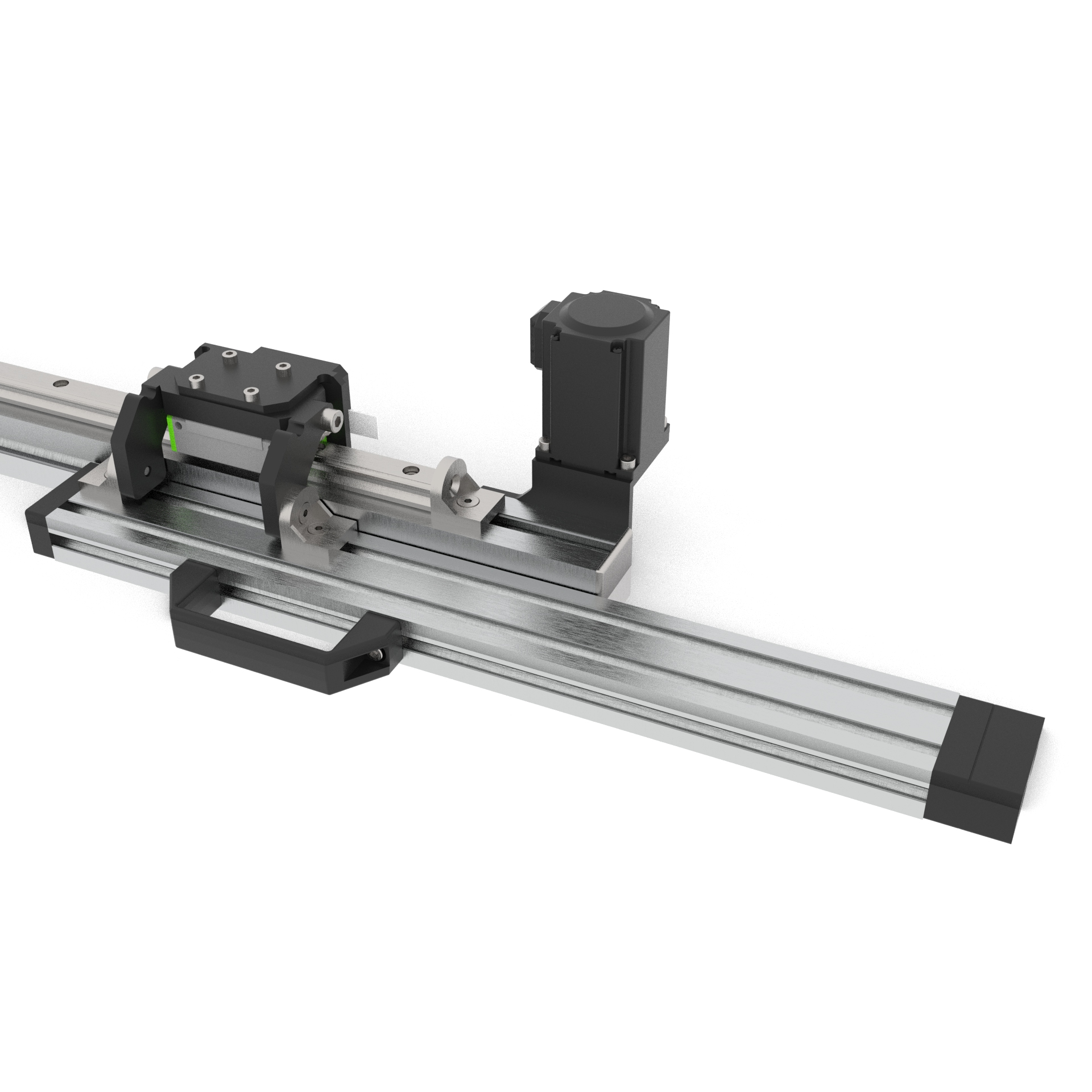

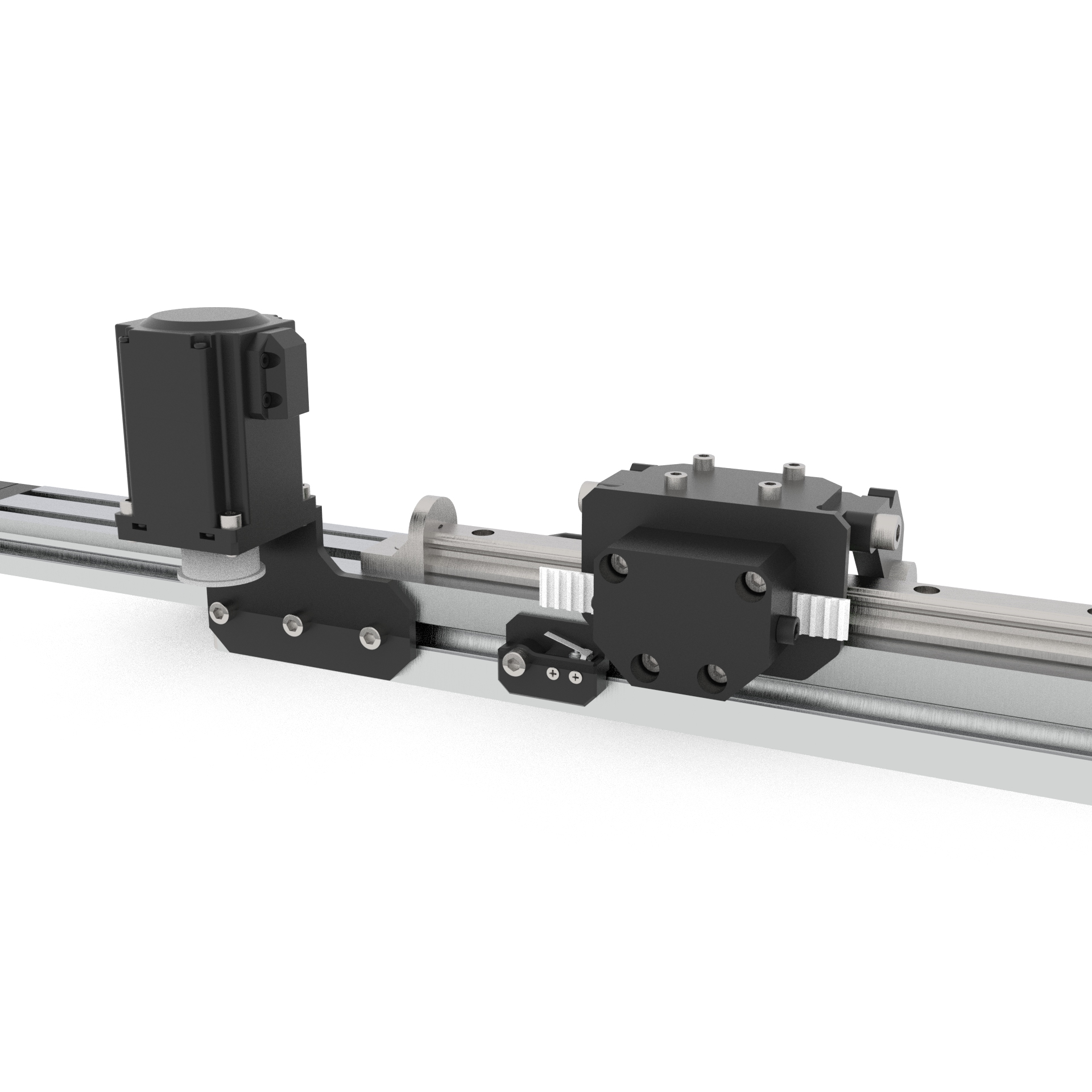

Introducing the Chop Saw Fence, a side stop accessory for your chop saw that is now even more precise with the help of our stepper motor controller. This fence allows for accurate and repeatable cuts, ensuring consistent results every time. Made from durable materials, it is designed to withstand the rigors of daily use. Upgrade your chop saw today with the Chop Saw Fence and take your woodworking to the next level.
This kit includes all the necessary components to build your own CNC machine with a UPAN axis controller.
- Axis CNC controller UPAN
- Alu Profile 45×45 mm
- Alu Profile 30×60 mm
- Aluminum milled parts
- Belt T5
- T5 pulley set
- Linear rail HGR_20
- Linear block HGH_20CA
- Nuts and screws
- 3d printed parts
- Power Supply 48V
- End switches
- Cables
- Housing for controller, motor driver, and power supply
- Nema 23 motor closed loop with encoder 2.5Hm with driver
UPAN powerful features
Versatile motor control:
The Axis Controller UPAN is designed to control a wide range of stepper motors, from small ones used in 3D printers to large industrial servomotors.
User-friendly touchscreen interface:
The controller features a large and intuitive touch screen interface, designed with the user in mind. The interface provides easy access to all motor control functions and configuration options. The touch screen display allows for precise control over motor movement, with real-time feedback on motor speed, position, and direction. The interface is easy to navigate, with clearly labeled buttons and icons, making it easy to set up and configure the controller for any motor application. Whether you are a beginner or an experienced user, our user-friendly interface makes controlling your motor a breeze.
Bluetooth / PC connectivity and mobile app integration:
The Axis Controller UPAN can also be controlled wirelessly via Bluetooth from our custom Android app. This feature provides users with the freedom to control their motors from a distance, without the need for cables. Additionally, the controller features a modern Type-C connector that allows for fast and reliable communication with a PC. Users can control their motors through a variety of software applications, making the UPAN controller a versatile and user-friendly solution for any motor control application.
Compact and durable:
The Axis Controller UPAN is designed to be both compact and durable, making it a reliable solution for a wide range of motor control applications. Whether you need to control small stepper motors for your 3D printer or larger industrial servo motors, the Axis Controller UPAN is up to the task. Its rugged design means it can handle demanding environments and challenging conditions, so you can rely on it to keep your motors running smoothly and efficiently. And with its compact size, it’s easy to mount and install, even in tight spaces.
Update Firmware:
Firmware updates are performed through an Android application. You can choose the firmware version that is suitable for your industry.
Choose from a range of firmware versions designed for your specific industry needs or contact our team for a customized solution.
UPAN controller technical characteristics:
Technical specifications of the Axis Controller UPAN, including its motor control capabilities, connectivity options, and compatibility with various software applications.
- All type of Nema stepper motors. Step/Dir signals
- Touchscreen display 3,2 TFT 240×320 40 FPS
- BLUETOOTH Small delay up to 100 ms
- End switch NC switch for hardware limits
- Android App. Connect up to 4 controllers
- PC software. Connect via Bluetooth or Type C
- Updates. update firmware
- Custom layouts*. Take for your business
3D Model in Fusion 360:
Ultimate Chop/Miter Saw Fence 3D Model: Boost Your Woodworking Precision
